Gas turbine cards IS200 IS220 series,DS200 series.
IC693/IC695/IC697/IC698/IC200/IC660/IC670 CPU module
Communication module,Analog digital module.
EX2100,EX2000 Excitation system card

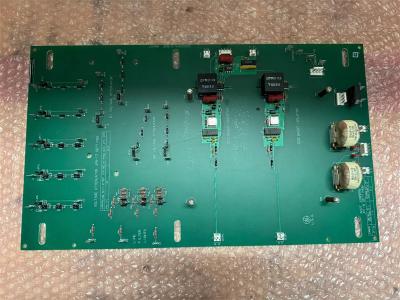

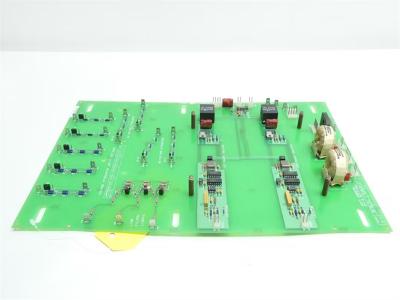

DS200NATOG3A consists of five resistor strings, each configured to attenuate different voltage levels. It provides input stab connectors and wire jumpers to adapt the board to voltage ranges such as 6900, 4200, 3300, 2200, or 1200 volts.
Part Number: DS200FCSAG1A
Number of channels: 12
Common Mode Voltage Range: +5 V dc
Maximum Lead Resistance: 15Ω
Analog output current: 0-20 mA
Operating temperature: -30 to 65 °C
Frequency: 50 or 60 Hz
Availability: In Stock
Part Number:IS200EXMDG1B
Functional Acronym/Abbreviation: EXMD
Hardware Form: G1B
Number of Female Connection Points: Two
Number of Vertical Pin Connectors: 2, Varying Sizes
Part Number: IS200ERGTH1A
Analog output current: 0-20 mA
Excitation voltage: 24 V dc
Maximum Lead Resistance: 15Ω
Processor: 32-bit digital signal processor
Analog output current: 0-20 mA
Operating temperature: 30 to 50 °C
Frequency: 50 or 60 Hz
Availability: In Stock
Part Number: IS200EHPAG1B
Number of Heat Components: 6
Number of Standoffs: 4
Quantity of CPU Sockets: 2
Operating temperature: 0 to 55°C
Availability: In Stock
The IS200EDCFG1A board measures field current and field voltage at the SCR bridge, and interfaces to the EISB board in the control panel over a high-speed fiber-optic link.
The IS200EBKP Exciter Back Plane (EBKP) is part of the control module and provides the backplane for the control boards, and the connectors for the I/O terminal board cables.
