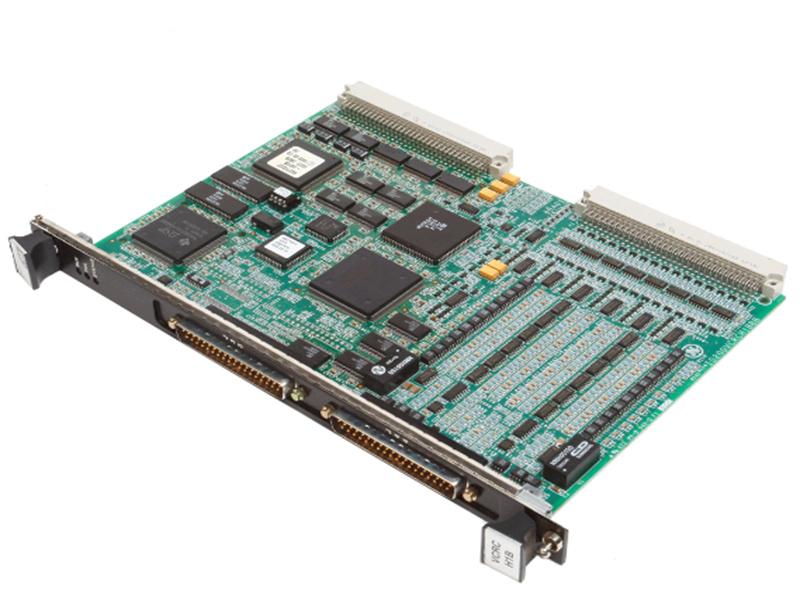

IS200ERDDH1A GE EX2100, Exciter Regulator Dynamics Discharge Board

Description:

The IS200ERDDH1A is an IGBT Excitation Regulator Interface and Dynamic Discharge Board (ERDD) designed for use with the EX2100 regulator control in both simplex and redundancy applications. In simplex configurations, a single ERDD is installed in the IS200ERBP excitation regulator backplane (ERBP), interfacing with the IS200ERIOH A excitation regulator I/O board (ERIO) and the excitation regulator static converter board (ERSC). For redundancy, one ERDD is mounted on the ERBP (M1), and another on the excitation regulator redundancy backplane (ERRB, M2/C), connecting to the ERIO, ERSC, and the excitation regulator redundancy relay board (ERRR).

The primary functions of the ERDD include:
- Controlling field excitation gate drives
- Managing dynamic discharge to handle excessive DC link voltage
- Monitoring various parameters such as DC link voltage, output shunt current, output field voltage, bridge temperature, and IGBT gate drive status through bridge feedback (both power and desaturation states)
- Controlling the de-excitation relay (K41) in simplex setups and the charging relay (K3) in redundant configurations

The ERDD features P1 and P2 backplane connectors and is a single-slot, double-height (6U) form factor board. It has seven connectors on its front face for connecting to other boards. The ERDD includes a board ID device that provides information such as:
- Barcode serial number
- Board type
- Hardware version

Frequently Asked Questions:

1.What type of temperature sensor input is provided for monitoring the regulator bridge, and how is this input scaled in terms of temperature range and analog output voltage?
For temperature monitoring of the regulator bridge, one resistive temperature device (RTD) input is provided. This RTD input is scaled as a 0–140 °C input with a 0–10 V dc analog output.

2.What is the feedback of Bridge Output Voltage VCO?
The output field voltage is monitored by an ERSC voltage attenuator. This attenuator generates a scaled feedback voltage in the -600 to +600 V dc output field voltage range. The ERDD is then connected to the attenuated signal, which is utilized to generate the output voltage feedback VCO (biased so that zero output voltage produces a VCO frequency of 1 MHz).

Datasheet Link:

IS200ERDDH1A GE EX2100, Exciter Regulator Dynamics Discharge Board PDF Datasheet
