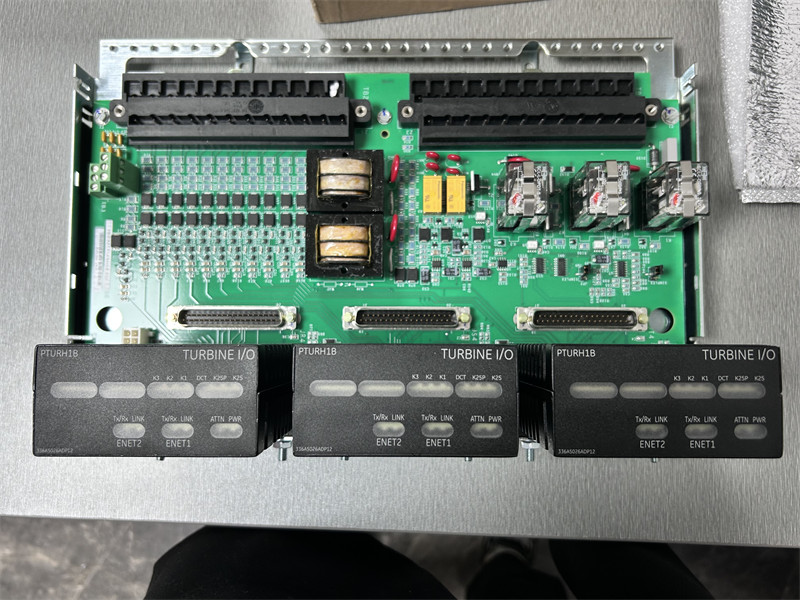

IS230TNTRH1C GE Mark VIe, Primary Turbine Protection DIN Rail Module

Description:

FUNCTIONAL DESCRIPTION:
The IS230TNTRH1C is a Primary Turbine Protection DIN Rail Module developed and engineered by General Electric for use in the Mark VIe Series within GE Distributed Control Systems. This module is typically installed on a DIN rail in industrial environments and serves as a critical safeguard for turbines used in power plants or other industrial processes. It protects against various faults and anomalies that could potentially harm the equipment or cause operational disruptions. While the specific functions and features of a primary turbine protection DIN rail module can differ based on the application and manufacturer, common protective and monitoring capabilities include:
- Overcurrent Protection: Prevents the turbine from drawing too much current, which could lead to overheating or damage.
- Overvoltage and Undervoltage Protection: Ensures the turbine operates within a safe voltage range to avoid electrical damage.
- Overfrequency and Underfrequency Protection: Monitors and protects against frequency deviations to maintain stable operation.
- Reverse Power Protection: Stops the turbine from feeding power back into the grid during shutdown or other abnormal conditions.
- Ground Fault Protection: Detects ground faults or short circuits and isolates the turbine to prevent damage.
- Temperature Monitoring: Keeps an eye on the temperature of key components to prevent overheating.
- Communication and Alarm Outputs: Often provides communication links to operators or central control systems to alert them of faults or irregularities.
- Data Logging and Analysis: Some modules can record and store performance data for later analysis and troubleshooting.

Frequently Asked Questions:

1.How many Ethernet Ports of IS230TNTRH1C?
Ethernet Ports: 2 Ethernet ports

2.What is the voltage at which the IS230TNTRH1C operates?
Operating Voltage: 9 V to 16 V dc

Datasheet Link:

IS230TNTRH1C GE Mark VIe, Primary Turbine Protection DIN Rail Module PDF Datasheet
