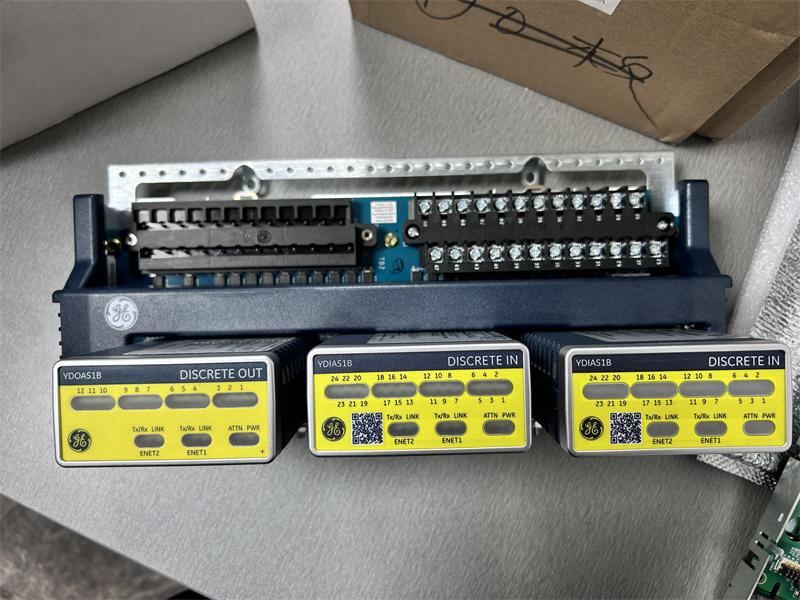

IS410TBCIS2C GE Mark VIe, Contact I/O Terminal Board

Description:

The IS410TBCIS2C is a Contact I/O (Input/Output) Terminal Board designed and manufactured by GE as part of the Mark VIe series, utilized in GE's Distributed Turbine Control Systems.
The TBCI terminal board is a contact input terminal board used for Simplex, Dual, or TMR configurations. The TBCI accepts 24 dry contact inputs wired to two barrier-type terminal blocks. For contact excitation, dc I/O wetting power is wired to the TBCI. The contact inputs have noise suppression to protect against surge and high-frequency noise. The YDIA I/O pack(s) mount directly on the TBCI terminal board. The TBCI is available in multiple versions to meet customer requirements. The TBCI Terminal Board with YDIA I/O Pack Specifications table provides the specifications for the TBCI versions available for use in the Mark VIeS Functional Safety System.

Specifications:
-I/O Pack Redundancy: TMR, Dual, or Simplex TMR, Dual, or Simplex
-I/O Pack: IS420YDIAS1B (qty 3, 2, or 1) (order separately) IS420YDIAS1B (qty 3, 2, or 1) (order separately)
-Number of Channels: 24 channels per module (24 inputs) 24 channels per module (24 inputs)
-Input I/O Wetting Voltage: 24 V dc Nominal, 110 mA, floating source to allow ground fault detection 20 V dc min, 32 V dc max
-I/O Wetting Power Connector: Mate-N-Lok receptacle (AMP 350766-1)
-Field Wiring Terminal Block: Barrier-type terminal blocks
-Field Wiring: 22 AWG min, 12 AWG max
-I/O Scan Time: Configured frame rate of the controller determines I/O scan rate for control
-Sequence of Events (SOE): Yes, 1 mS SOE sample rate
-Diagnostic Fault Detection: Power-up self test, loss of contact input voltage, non-responding contact input in background test mode, and incorrect terminal
board check
-I/O Pack DC Control Power: 24 / 28 V dc, 6.8 W max per YDIA
-I/O Pack DC Power Connector: Micro Mate-N-Lok receptacle (AMP 1445022-3)
-I/O Pack Construction: Aluminum case
-I/O Pack Health: Visual status LEDs, circuit health variables available to control logic

Frequently Asked Questions:

1.What is Hazardous Locations Capability of IS410TBCIS2C?
Class 1, Div 2 / Class 2, Zone 2 / ATEX. For ratings and further details, refer to the document Mark VIe and Mark VIeS Control
Systems Equipment in Hazardous Locations (HazLoc) Instruction Guide.

2.What's method of mounting IS410TBCIS2C?
DIN-rail mounted.

3.What are IS410TBCIS2C related products?
IS410TBCIS2C/ IS410TBCIS2CEE/ IS420YDIAS1B/ IS410TBCIS2C
