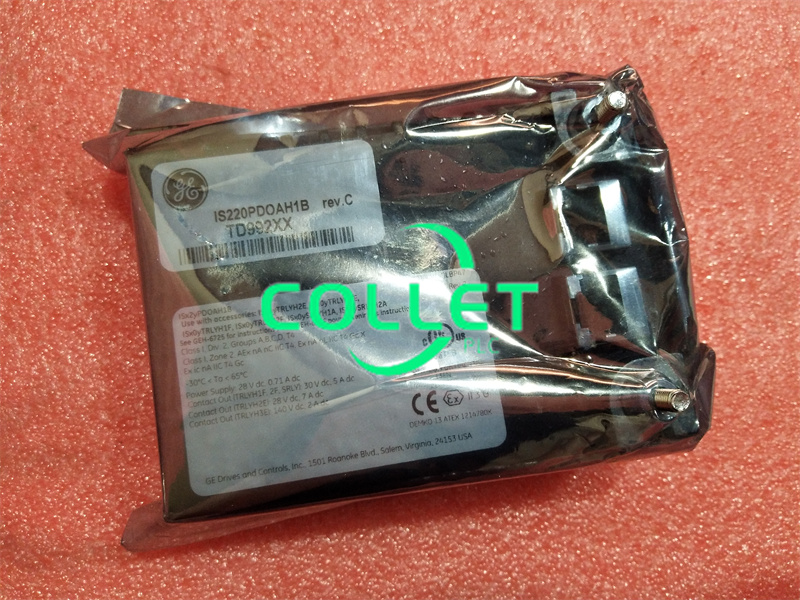

IS220PDOAH1BC GE Mark VI, Discrete Output Pack

Description:

The IS220PDOAH1BC is a discrete output pack developed by General Electrics as part of the Mark VIe control system. It serves as a vital bridge in the electrical connection between one or two I/O Ethernet networks and a dedicated discrete output terminal board. This essential component comprises two key elements: a processor board common to all Mark VIe distributed I/O packs and an acquisition board tailored to specific discrete output functionalities. Designed for controlling up to 12 relays, it also facilitates feedback integration from the terminal board.

Features
Relay options include electromagnetic relays compatible with various terminal boards (TRLYH1B, C, D, F) and solid-state relays for type TRLYH1E boards. This flexibility allows customization to meet specific application needs.
Input connectivity is established via dual RJ45 Ethernet connectors, providing reliable and redundant interfaces for seamless data exchange. Power is supplied through a three-pin input, ensuring stable and efficient operation. On the output side, the PDOA features a DC-37 pin connector that easily links with the corresponding terminal board connector, simplifying installation and maintenance.

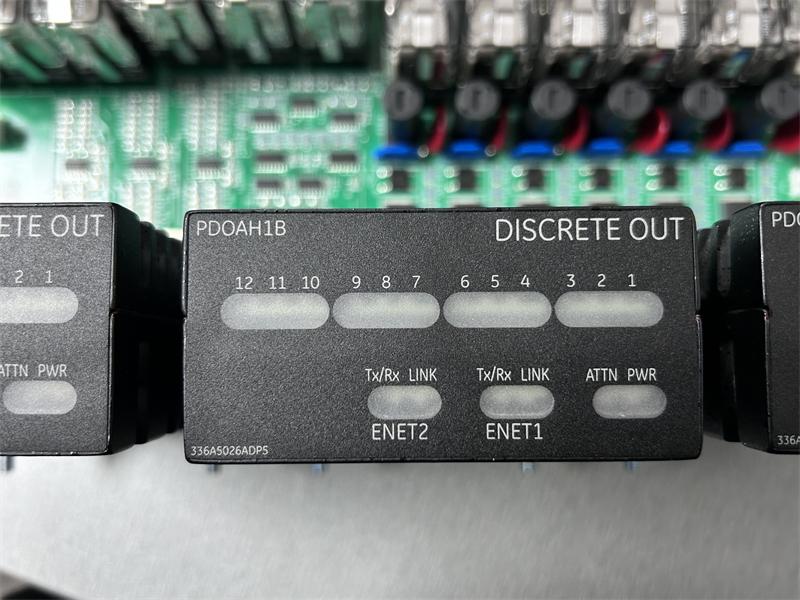

For monitoring and troubleshooting, the component includes indicator LEDs for visual diagnostics, allowing users to quickly assess system status and performance. Additionally, local serial communications can be set up via an infrared port for more detailed diagnostic and configuration tasks.
Installation
Begin by securely mounting the selected terminal board in the desired location. For a simplex configuration, connect one PDOA I/O pack to the terminal board connector. For a TMR setup, connect three PDOA I/O packs to the terminal board connectors.
Ensure mechanical stability by securing the packs using threaded studs near the Ethernet ports. These studs should fit into a mounting bracket designed for the terminal board type. Adjust the bracket's position to avoid right-angle force on the DC37 connector between the pack and the terminal board, typically a one-time adjustment.
Depending on the system configuration, plug in one or two Ethernet cables. The PDOA pack operates seamlessly using either port. If opting for dual connections, standard practice is to connect ENET1 to the network associated with the R controller.
Power the pack by connecting the power connector on the side. There is no need to remove power from the cable when inserting this connector, as the I/O pack features built-in soft-start capability that manages current inrush effectively.
Configure the I/O pack according to specific requirements to ensure optimal functionality within the application.
Processor
High-Speed Processor with RAM and Flash Memory: A high-performance processor with sufficient RAM and flash memory for efficient data processing and storage.
Dual Independent 10/100 Ethernet Ports with Connectors: Two fully autonomous Ethernet ports with compatible connectors for reliable and rapid network connectivity.
Hardware Watchdog Timer and Reset Circuit: Built-in hardware watchdog timer and reset circuitry for system reliability, ensuring continuous operation and quick recovery in case of issues.
Local Ambient Temperature Sensor: An onboard sensor monitoring local ambient temperature for environmental control.
Infrared Serial Communications Port: An infrared port enabling local diagnostic and configuration tasks through wireless connectivity.
Status-Indication LEDs: LEDs providing visual feedback on the operational status of the processor board.
Electronic ID and ID Reading Capability: Electronic identification for the processor board and the ability to read ID information from other boards, streamlining system management.
Extensive Programmable Logic Support for Acquisition Board: Substantial programmable logic capabilities to support and enhance acquisition board functionality, enabling customization for specific applications.
Input Power Connector with Soft Start/Current Limiter: A dedicated input power connector featuring soft start and current limiting mechanisms for controlled and safe power delivery.
Local Power Supplies with Sequencing and Monitoring: Local power supplies with sequencing and monitoring features for efficient power management and system stability.

Frequently Asked Questions:

1.What is the function of conducting a self-diagnostic check when the system initially boots up?
The initial boot-up self-diagnostic check is performed to verify the operational status and reliability of essential system elements such as RAM, flash storage, network interfaces, and the motherboard hardware, guaranteeing their correct functionality right from the start.

2.What's ATEX Zone 2, Group IIC Location Standards of IS220PDOAH1BC?
EN 60079-11:2012; EN 60079-7:2015; and EN 60079-0:2018

3.What are the IS220PDOAH1BC related products?
IS220PDOAH1B/IS220PDOAH1BE/IS220PDOAH1BC

Datasheet Link:

IS220PDOAH1BC GE Mark VI, Discrete Output Pack PDF Datasheet
