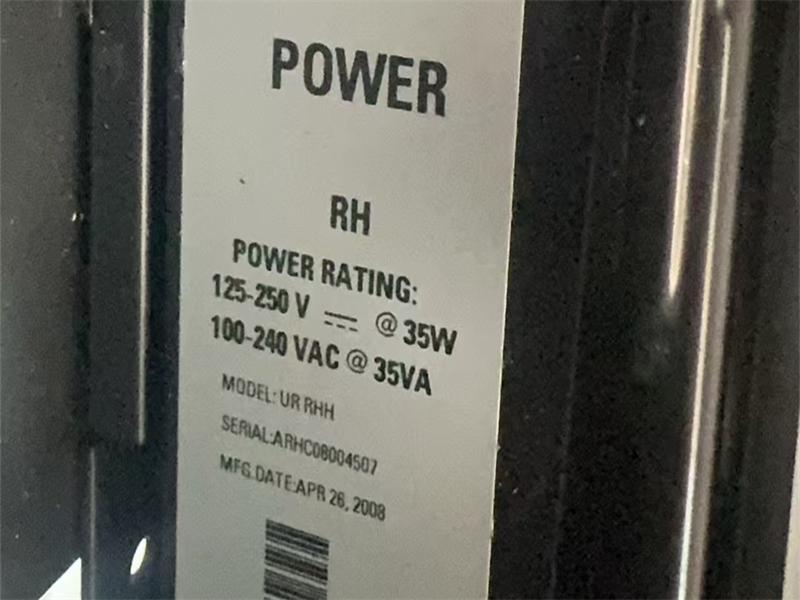

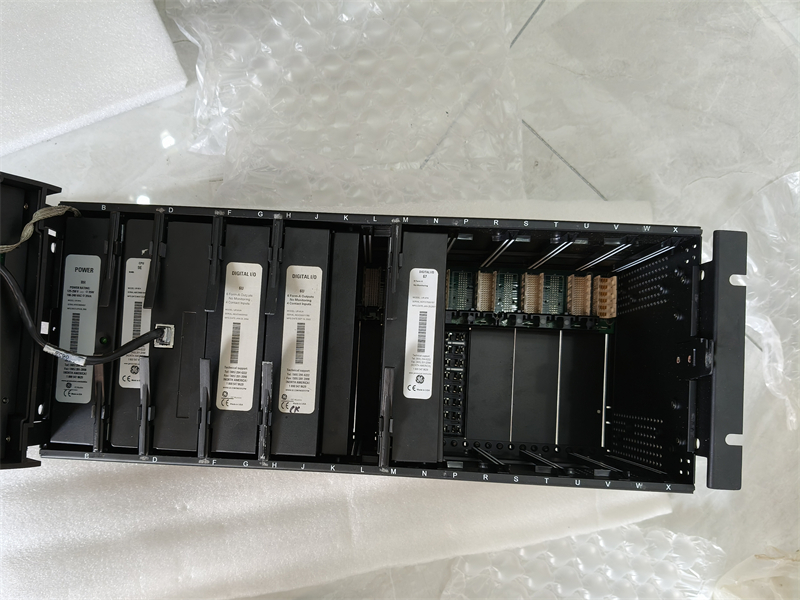

URRHH GE Multilin, Power Supply Module

Description:

The General Electric URRHH is a power supply module designed specifically for integration into the Universal Relays series. It offers two voltage range options and can be configured with or without redundant power supply capabilities.

Voltage Range Options:
- Low Range (LO): Operates within a nominal voltage range of 24 to 48 V DC.
- High Range (HI): Functions within a nominal voltage range of 125 to 250 V, compatible with both DC and AC.

Primary Functions:
- Provides power to the relay itself.
- Offers power for dry contact input connections.

Internal Fuse Rating:
- The internal fuse is rated at 4A / 250 V, ensuring safe and reliable operation.

Self-Testing Mechanisms:
- The health and functionality of the power supply module are regularly assessed through built-in self-testing mechanisms.
- These tests include both major and minor assessments essential for verifying the integrity of the device.
- In case of a critical failure, these mechanisms will de-energize the power supply module.

Notification System:
- If any hardware issues or critical failures are detected, the relay promptly communicates this to nearby users.
- This communication is conveyed through LEDs located on the faceplate of all UR units.
- The faceplate LEDs related to the power supply display CONTINUOUS ON, ON / OFF CYCLING, and OFF, providing clear status indications and alerts for potential issues.

Technical Specifications:
- Voltage Range: 24-250 V AC/DC
- Current Range: 1-100 A AC/DC
- Frequency Range: 50/60 Hz
- Accuracy: ±0.5% of reading
- Repeatability: ±0.1% of reading
- Operating Temperature Range: -20 to +70°C
- Storage Temperature Range: -40 to +85°C

Frequently Asked Questions:

1.What is the payment term?
Wire transfer only

2.When does the warranty period start?
One year from the time the client receives the goods

Datasheet Link:

URRHH GE Multilin, Power Supply Module PDF Datasheet
