VSV301 Vibration 600-034 VibroSmart monitoring module

Description:

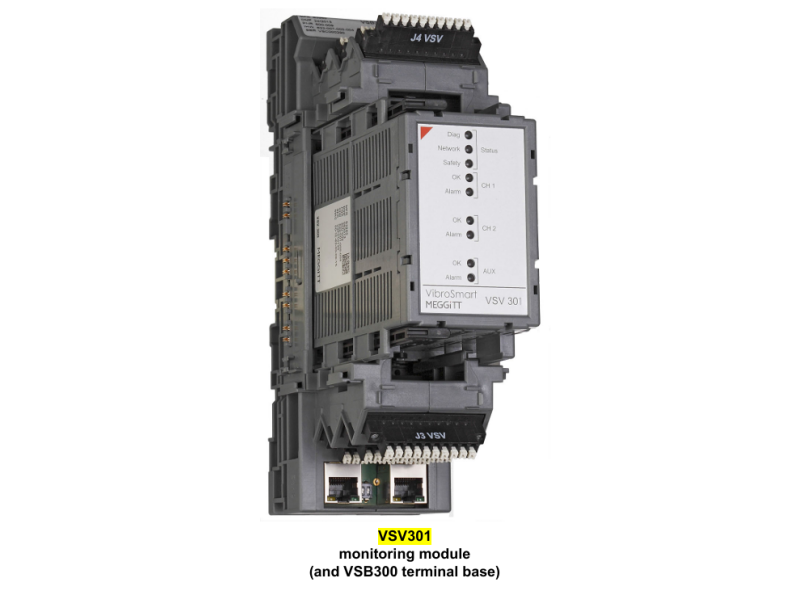

 VSV301 monitoring module

 The VSV301 monitoring module performs the data acquisition and all of the signal processing (filtering, analog-to-digital conversion, time and frequency domain processing, and resampling) required to produce processed outputs and extracted data for physical output and data presentation in VibroSight and VibroSight Scope. This includes spectral band extractions, advanced FFT analysis, trending and limit checks (alarm and sensor OK), and run-up / run down acquisition.

 In addition, the VSV301 module has four basic and two advanced logic functions that can be used to combine local alarm and status information in order to drive the module’s relays. This local information and the logic function outputs can also be used as inputs to the basic logic functions of a VSI010 communications interface module in the same measurement block.

 Like all VibroSmart modules, the VSV301 module is fully software configurable using the VibroSight software. Using VibroSight Configurator, a module can be configured to capture data continuously at scheduled intervals or on the detection of an alarm condition. In addition, spectral resolution, frequency bandwidth, windowing function and averaging are all fully configurable.

 Using VibroSight Vision, an extensive catalogue of plots is available for the visualisation and analysis of measurement data.

Datasheet Link:

VSV301 Vibration 600-034 VibroSmart monitoring module PDF Datasheet
