EC222 Vibration 922-222-000-002 Standard Cable Assembly

Description:

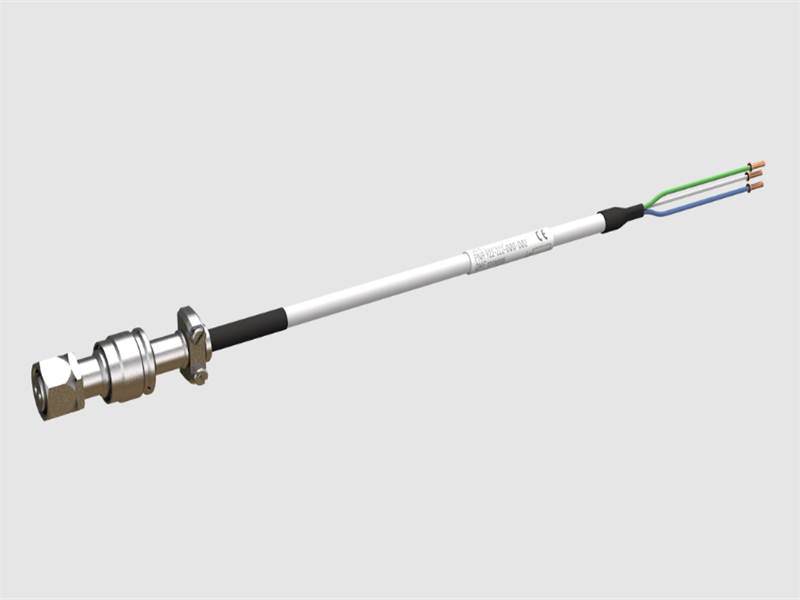

EC222 922-222-000-002 Standard cable assembly with a CG505 type connector (7/16″ 27 UNS-2B) and 2-wire cable (K221).

High-quality, high-reliability cable assembly for use with CA280 vibration sensors (accelerometers using external signal conditioners).
For use in harsh environments characterised by high temperatures and/or hazardous areas (potentially explosive atmospheres).
Note: While the EC222 cable assembly and the EC119 cable assembly are similar, the EC222 has less protection and one shield.

Features:
-High-quality, reliable cable assembly for CA280 vibration systems
-K221 low-noise cable with Teflon PFA outer sheath (Ø 4.8 mm)
-Threaded connector (CG505 type) to flying leads
-2-wire, with shield

Datasheet Link:

EC222 Vibration 922-222-000-002 Standard Cable Assembly PDF Datasheet
