TQ412 Vibration 111-412-000-013 Proximity Transducer

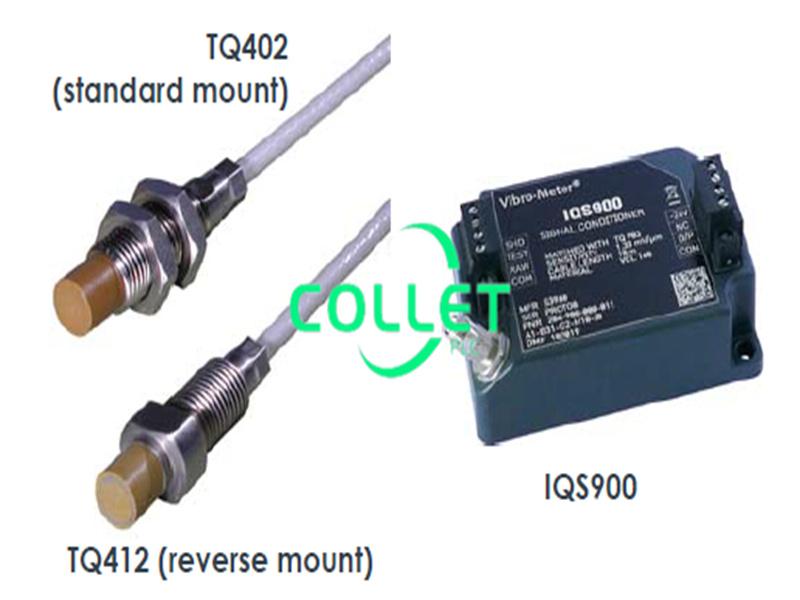

The TQ412 and TQ402 proximity transducers are essentially the same except that the TQ402 is intended for standard-mount and the TQ412 is for reverse-mount applications.

Item NO.:
TQ412
Payment:
T/T
Market Price:
$3000
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
8
Product weight:
0.25 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	TQ412
PN No.	111-412-000-013
Catalog	NIL
Description	Proximity Transducer
Origin	Switzerland
HS CODE	85389091
Dimension	854 (CM)
Weight	0.25 kg

Description:

TQ402 and TQ412 proximity transducers and EA402 extension cable
General
Transducer input requirements :High-frequency power source from an IQS900 signal conditioner
Environmental
Temperature ranges
•Transducer :−40 to +180 °C with drift < 5 % (operating). +180 to +220 °C with drift > 5 % (short-term survival).
•Transducer and cable :−40 to +195 °C if used in an Ex Zone
•Cable, connector and optional protection :−40 to +200 °C
Protection rating (according to IEC 60529) : The head of the proximity transducer (transducer tip and integral cable) is rated IP68
Vibration (according to IEC 60068-2-26) : 5 g peak between 10 and 500 Hz
Shock acceleration (according to IEC 60068-2-27) : 15 g peak (half sine-wave, 11 ms duration)
Physical characteristics
Transducer construction :Wire coil Ø 8 mm, Torlon (polyamide-imide) tip, encapsulated in stainless steel body (AISI 316L) with high-temperature epoxy glue
Integral and extension cables : FEP covered 70 Ω coaxial cable, Ø 3.6 mm
Connectors : Self-locking miniature coaxial connectors. Note: When connecting, these should be hand-tightened until locked.
Optional protection
•Flexible stainless steel hose (protection tube) : The stainless steel hose provides additional mechanical protection but is not leak-tight
•FEP sheath (extruded fluorinated ethylene propylene) : The FEP sheath provides resistance to almost all chemicals and low permeability to liquids, gases and moisture. It is also flexible, low friction and mechanically tough.

Order Number:

TQ412 111-412-000-013 A1-B6-E010-F0-G000-H05
TQ412 111-412-000-013 A1-B1-E010-F0-G000-H05
TQ412 111-412-000-013 A1-B1-E010-F0-G000-H10
TQ412 111-412-000-012 A1-B1-E050-F2-G050-H05
TQ412 111-412-000-012 A1-B1-E010-F1-G010-H10

Datasheet Link:

TQ412 Vibration 111-412-000-013 Proximity Transducer PDF Datasheet
