Manufacture |
EMERSON/EPRO |
|
Model |
KJ4001X1-BE1 |
| PN No. |
12P0818X072 |
| Catalog | Delta V |
|
Description |

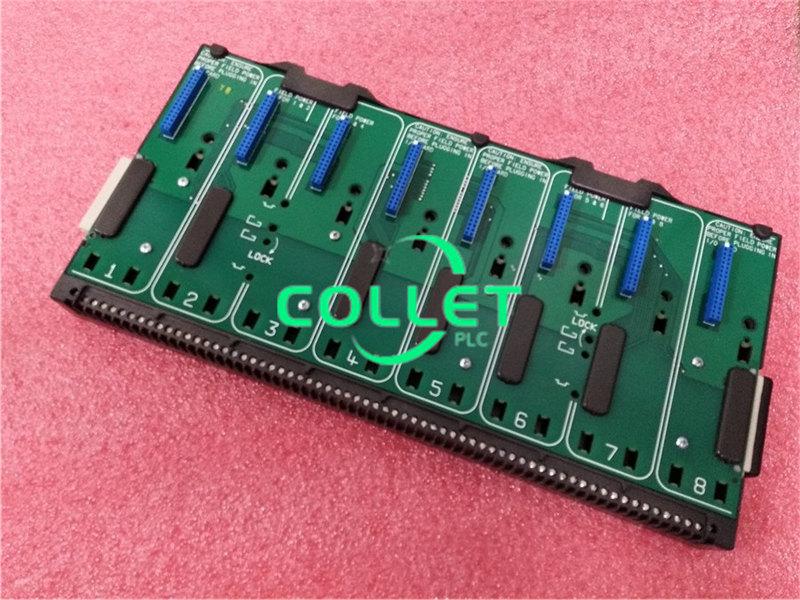

8-Wide IO Carrier With Shield |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
10*6*2 (CM) |
| Weight | 0.2 kg |
Description:
Power Specifications
LocalBus Circuit： 12.6 VDC at 8 A
Field Circuit Power： 30 VDC at 6.5 A
Environmental Specifications
Ambient Temperature： -40 to 70o C
Shock： 10g ½ Sinewave for 11 msec
Vibration： 1mm Peak to Peak from 5 to 16Hz; 0.5g from 16 to 150Hz
Airborne：ISA-S71.04 –1985 Airborne
Contaminants：Contaminants Class G3
Relative Humidity 5 to 95% Non-Condensing IP 20 Rating

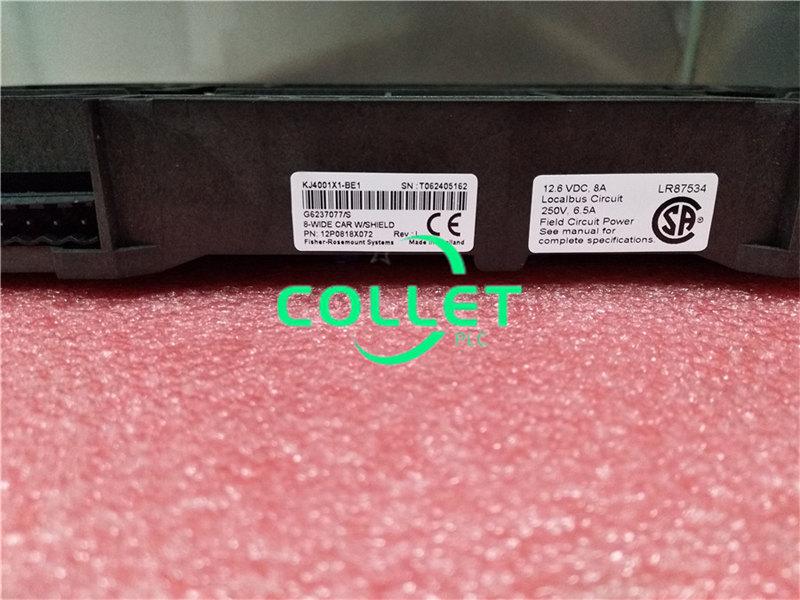

Note: Refer to the product label for serial number and location and date of manufacture.
Warning: This product has specific instructions for installation, removal and operation in hazardous
areas. Refer to document 12P2046 "DeltaV Scalable Process System Zone 2 Installation Instructions". Other installation instructions are available in the "Installing Your DeltaV Automation System" manual.
Frequently Asked Questions:
1.What are the precautions of KJ4001X1-BE1?
Power must be de-energized before disconnecting any carriers or LocalBus Extender cables.
2.How to maintain and adjust KJ4001X1-BE1?
This unit contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.
Datasheet Link:
KJ4001X1-BE1 Emerson 12P0818X072 8-Wide IO Carrier With Shield PDF datasheet
