IS200TDBTH2A GE Mark VIe, Digital Input/Output Terminal Board

Description:

The IS200TDBTH2A terminal board was engineered by GE as part of the Mark VI series. The Mark VI, along with its subsequent models, was conceived to oversee and streamline the functions of gas and steam turbines.

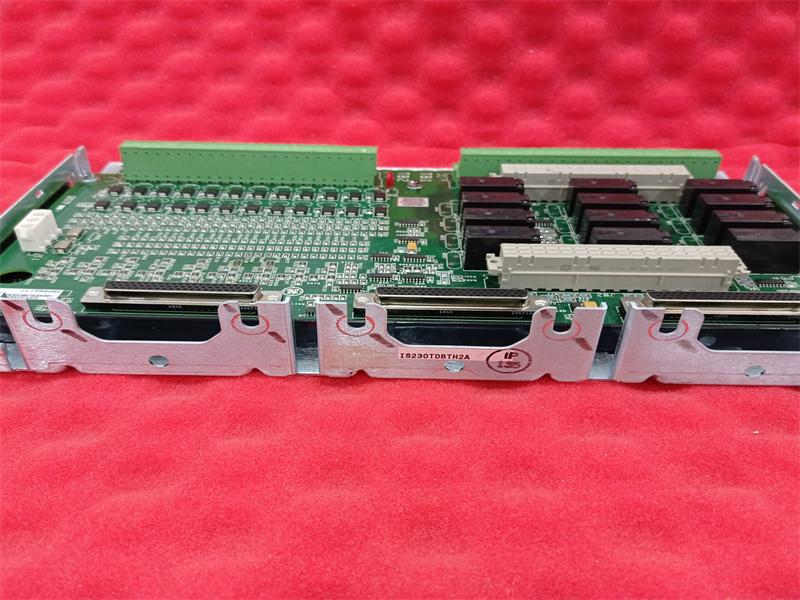

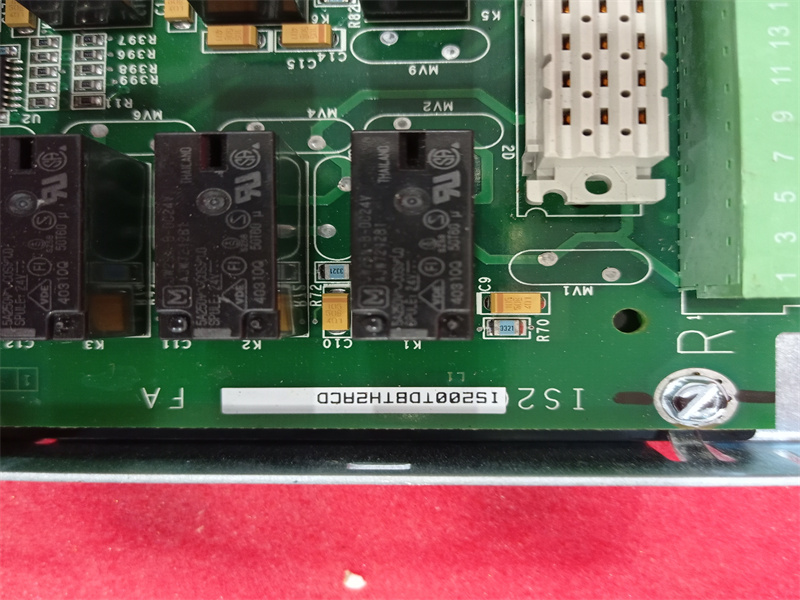

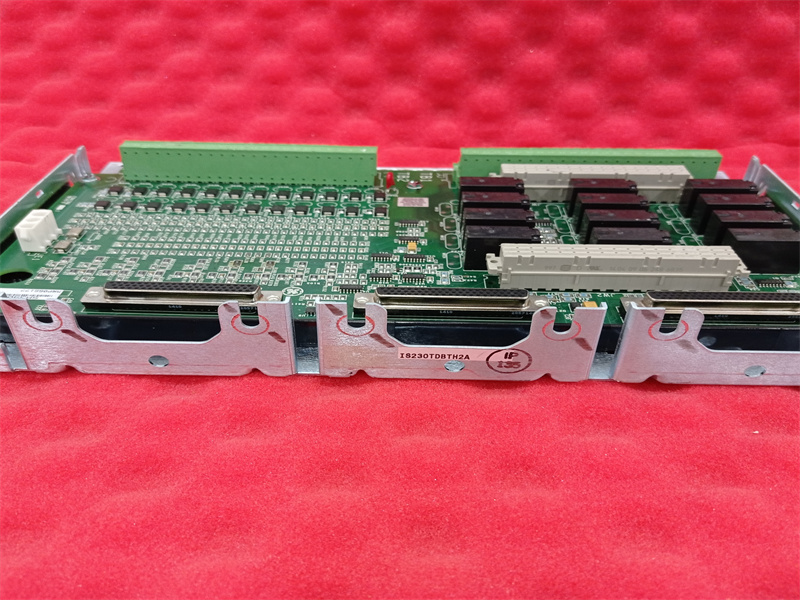

This particular board is characterized as a notably large device equipped with multiple electronic parts. It features two extensive terminal blocks adorned with an array of diminutive, silver metal terminals that are shaped like cubes.
On the left side of the printed circuit board (PCB), situated between these two terminal blocks, resides a singular spherical capacitor.
Furthermore, the board is fitted with three connector ports, each boasting numerous female connectors.

Datasheet Link:

IS200TDBTH2A GE Mark VIe, Digital Input/Output Terminal Board PDF Datasheet
