IS200TTURH1C GE Mark VI, Termination Board

Description:

The IS200TTURH1C is primarily rectangular, with a few small cutouts.  The board is used together with other PCBs like the PTUR and VTUR boards to control the synchronization of the generator.  This is done primarily through hardware and connections.

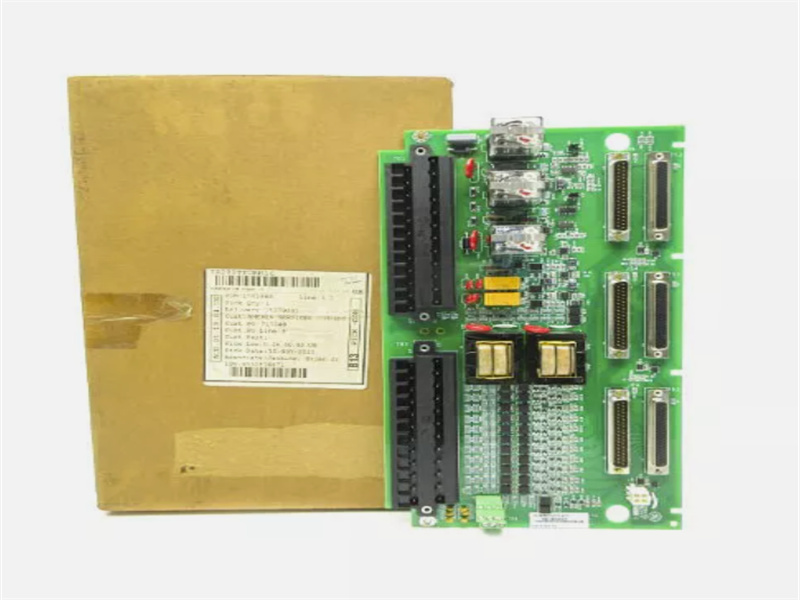

The IS200TTURH1C has several surface-mounted relays.  Additionally, the board uses variable resistors and also has two transformers located near the center of the board.  Communication with other board components occurs through d-shell connectors (both male and female), plug connectors, and terminal blocks.  The largest two terminal blocks on the board have screw-mounted connectors that are numbered for reference.

Datasheet Link:

IS200TTURH1C GE Mark VI, Termination Board PDF Datasheet
