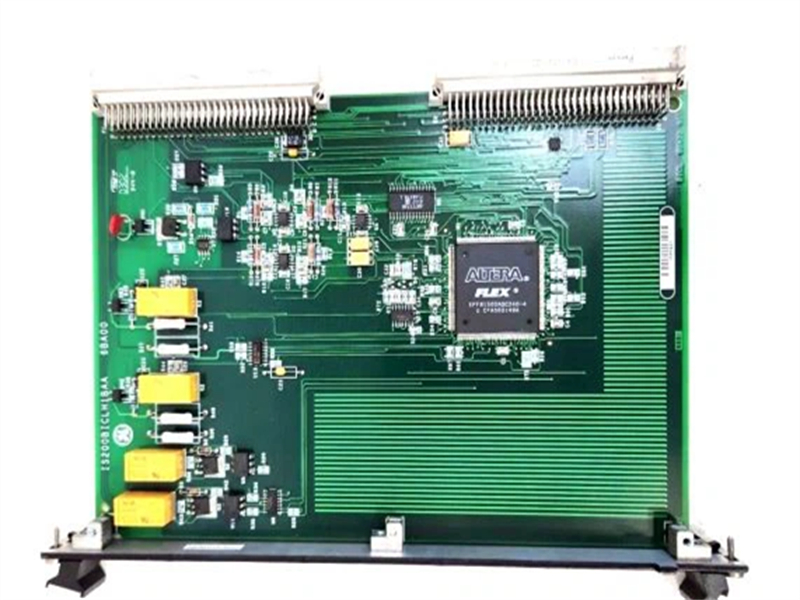

IS200BICLH1AFF GE Speedtronic Mark VI, IGBT Drive/Source Bridge Interface Board

Description:

The GE IS200BICLH1AFF is an IGBT Drive/Source Bridge Interface Board designed for use within the GE Mark VI Turbine Control System Series. This board serves as a critical component for managing and controlling GE-compatible gas, steam, and wind turbine automated drives assemblies. It is part of the Innovation Series, offering advanced features and functionalities that make it an ideal choice for modern industrial applications.

Key Features:
- Acts as an interface between the Innovation Series device and a Bridge Personality Interface PCB (BPIB, SCNV, or BPIA).
- Equipped with a system fault display and a PWM speed control interface.
- Houses a serial 1024-bit memory that contains information about the board’s identification and revision.
- Designed for installation in Slot 5 of the VME type rack and connects via two backplane connectors.
- Includes four RTD (resistance thermal detector) sensor inputs and a fan pulse width modulated speed control interface.
- Internally, the board contains 73 resistors, 31 capacitors, 3 diodes, 15 integrated circuits, 4 relays, a metal oxide varistor, and 3 transistors.

Frequently Asked Questions:

1.What is the primary function of the GE IS200BICLH1AFF?
The primary function of the GE IS200BICLH1AFF is to act as an interface between an Innovation Series device and a Bridge Personality Interface PCB, providing a system fault display and PWM speed control.

2.In which slot should the GE IS200BICLH1AFF be installed?
The GE IS200BICLH1AFF should be installed in Slot 5 of the VME type rack.

3. What type of memory does the GE IS200BICLH1AFF have?
The GE IS200BICLH1AFF has a serial 1024-bit memory that is pre-programmed with both board revision and basic identification information.
