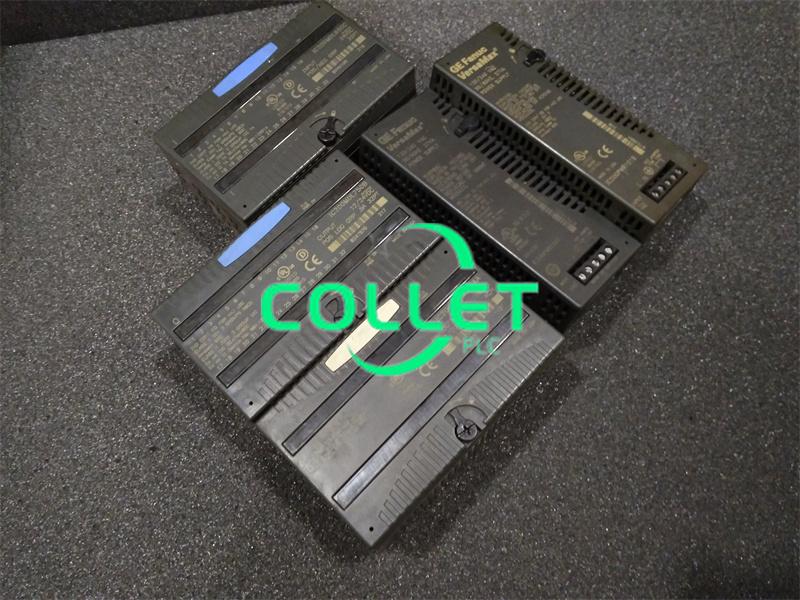

IC200MDL750 GE FANUC, Discrete output module

Description:

Overview:
The IC200MDL750 is a discrete output module that provides two groups of 16 discrete outputs, designed for use in industrial control systems. These outputs are positive or sourcing type, switching the loads to the positive side of the DC supply and supplying current to the loads. The module requires an external DC power supply to switch power to the loads, and intelligent processing is performed by the CPU or NIU.

Key Features:
-Provides two groups of 16 discrete outputs.
-Positive logic output module.
-Individual green LEDs indicate the on/off state of each output point.
-The green FLD PWR LED indicates when field power is applied to the module.
-The green OK LED indicates when backplane power is present to the module.
-External power supply range: +10.2 to +30VDC, with a nominal voltage of +12/24VDC.
-No internal fuses for protection.
-Suitable for installation in Class I, Division 2, Groups A, B, C, D hazardous locations.

Technical Specifications:
-User input to logic (optical) and frame ground: 250VAC continuous; 1500VAC for 1 minute.
-Group to group isolation: 250VAC continuous; 1500VAC for 1 minute.
-LED indicators: One LED per point shows individual point on/off state.
-Backplane current consumption: 5V output, 90mA maximum.
-Output voltage: +10.2 to +30VDC, nominal +12/24VDC.
-Output voltage drop: 0.3V maximum.
-Load current: 0.5A at 30VDC maximum (resistive), 2.0A maximum for 100ms inrush.
-Output leakage current: 0.5mA at 30VDC maximum.
-On response time: 0.2ms, maximum.
-Off response time: 1.0ms, maximum.

Frequently Asked Questions:

1.What is the maximum load current the IC200MDL750 can handle?
The IC200MDL750 can handle a maximum load current of 0.5A at 30VDC (resistive) and 2.0A maximum for 100ms inrush.

2.What is the nominal voltage range for the external power supply of the IC200MDL750?
The nominal voltage range for the external power supply is +12/24VDC.

3.Does the IC200MDL750 have any internal fuses for protection?
No, the IC200MDL750 does not have any internal fuses for protection.
