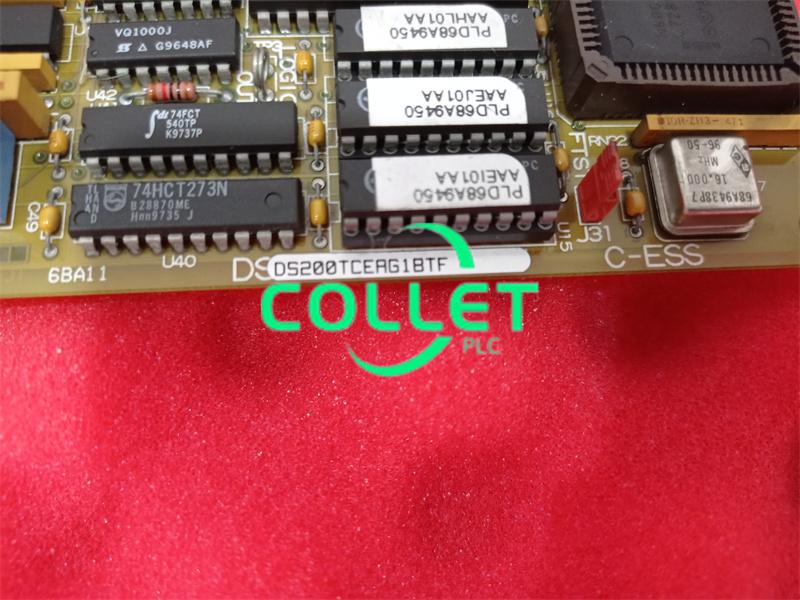

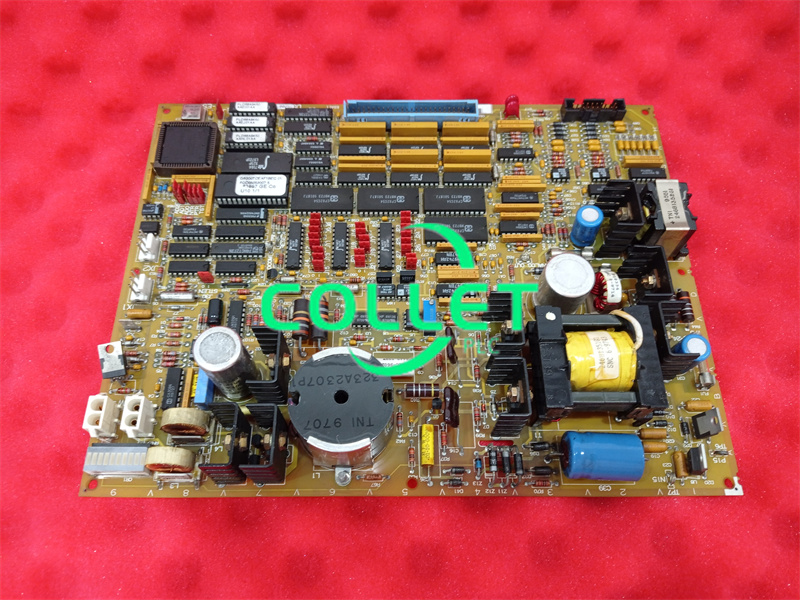

DS200TCEAG1BTF GE Mark V, Emergency Over Speed Board

Description:

The GE DS200TCEAG1BTF is an Emergency Overspeed Board designed for use within the Mark V Series of turbine control systems. This printed circuit board (PCB) is functionally classified as a critical component for monitoring and controlling overspeed conditions in industrial turbines. The DS200TCEAG1BTF incorporates advanced Speedtronic technology, which is a hallmark of GE's Mark I Series and has been streamlined into the Mark V Series. Despite being considered obsolete due to its discontinuation, this board still attracts niche demand in the automated industrial marketplace. It features one microprocessor, sockets for multiple programmable erasable read-only memory (EPROM) modules, and includes 3 fuses, 30 jumpers, and 2 bayonet connectors. The board is designed to protect components from voltage spikes and irregular voltage conditions, with each fuse precisely identified and rated for specific protection. The DS200TCEAG1BTF also includes various connectors for interfacing opportunities and manually-movable hardware jumpers for customization, making it a versatile component in turbine control systems.

Frequently Asked Questions:

1.What is the primary function of the DS200TCEAG1BTF?
The primary function of the DS200TCEAG1BTF is to serve as an Emergency Overspeed Board in the Mark V Series of turbine control systems, monitoring and controlling overspeed conditions to ensure the safety and efficiency of industrial turbines.

2.What type of memory modules does the DS200TCEAG1BTF support?
The DS200TCEAG1BTF supports multiple programmable erasable read-only memory (EPROM) modules, which are used for storing critical control system data.

Datasheet Link:

DS200TCEAG1BTF GE Mark V, Emergency Over Speed Board PDF Datasheet
