IQS450 Vibration 204-450-000-001 Proximity Measurement System

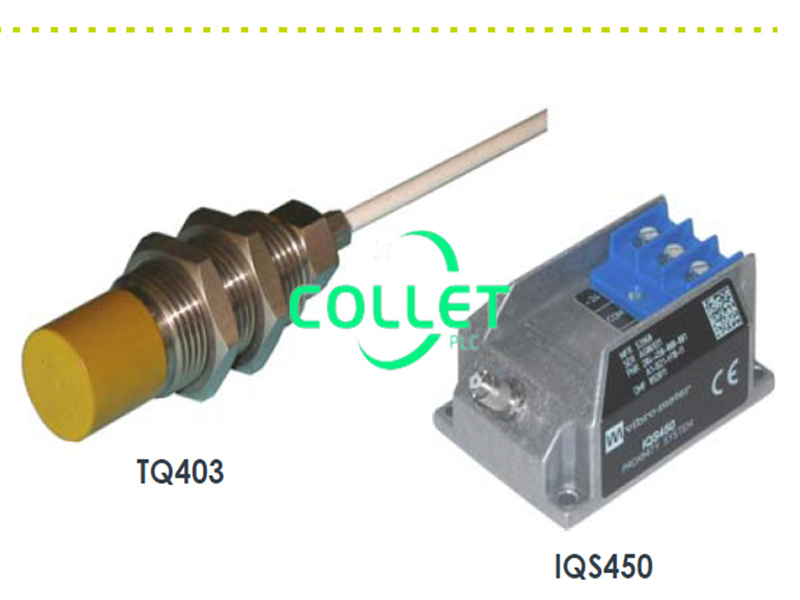

Description:

The TQ401, EA401 and IQS450 form a proximity measurement system from Meggitt’s vibro-meter ® product line. This proximity measurement system allows contactless measurement of the relative displacement of moving machine elements.

The system is based around a TQ401 non-contact sensor and an IQS450 signal conditioner. Together, these form a calibrated proximity measurement system in which each component is interchangeable. The system outputs a voltage or current proportional to the distance between the transducer tip and the target, such as a machine shaft.

The active part of the transducer is a coil of wire that is moulded inside the tip of the device, made of Torlon ® (polyamide-imide).

The transducer body is made of stainless steel. The target material must, in all cases, be metallic. The transducer body is available with metric or imperial thread. The TQ401 has an integral coaxial cable, terminated with a self-locking miniature coaxial connector. Various cable lengths (integral and extension) can be ordered.

The IQS450 signal conditioner contains a high frequency modulator / demodulator that supplies a driving signal to the transducer. This generates the necessary electro-magnetic field used to measure the gap. The conditioner circuitry is made of high-quality components and is mounted in an aluminium extrusion.

Order Number:

IQS450 204-450-000-001 A1-B21-H05-I0

IQS450 204-450-000-001 A1-B23-H05-I0

IQS450 204-450-000-002 A1-B21-H05-I0

IQS450 204-450-000-002 A1-B21-H10-I0

IQS450 204-450-000-002 A1-B31-H05-I0

IQS450 204-450-000-002 A3-B23-H10-I0

IQS450 204-450-000-002 A3-B23-H10-I1

IQS450 204-450-000-002-A1-B23-H05-I0

Datasheet Link:

IQS450 Vibration 204-450-000-001 Proximity Measurement  System PDF Datasheet
