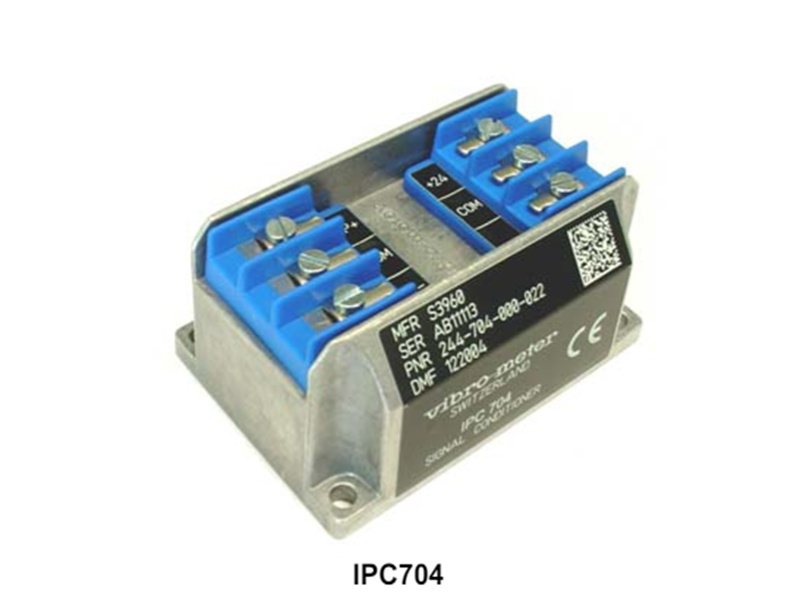

IPC704 Vibration 244-704-000-042 Signal Conditioner

-For CA piezoelectric accelerometers and CP dynamic pressure transducers
-Configurable high-pass and low-pass filters
-Frequency range: 0.5 Hz to 20 kHz
-Optional integrator to give a velocity output
-Optional 2-wire current or 3-wire voltage transmission
-Certified for use in potentially explosive atmospheres
-A range of installation options are available

Item NO.:
IPC704
Payment:
T/T
Market Price:
$3000
Product Origin:
Switzerland
Color:
Depends on material
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
8
Product weight:
0.25 kg

Inquiry now

product introduction

Manufacture	Vibration
Model	IPC704
PN No.	244-704-000-042
Catalog	NIL
Description	Signal Conditioner
Origin	Switzerland
HS CODE	85389091
Dimension	12118 (CM)
Weight	0.25 kg

Description:

The IPC 704 signal conditioner converts the charge based signal from a piezoelectric transducer into a current or a voltage signal. This current or voltage sig nal is transmitted to the processing electronics via a standard 2-wire or 3-wire transmission cable.

The current modulation technique allows transmis sion over a distance of up to 1 km. A GSI galvanic separation unit is required for this configuration.

The electronic circuitry of the IPC 704 signal condi tioner is incorporated into a moulded aluminium enclosure. The signal conditioner has configurable high-pass and low-pass filters and an optional inte grator to give a velocity output. Furthermore, RFI fil ters protect the input and output against radio frequency interference and other electromagnetic influences.

A range of installation options are available for the IPC 704 signal conditioner, including:

-A polyester enclosure providing environmental protection against dust, oil and water jets

-A mounting adaptor allowing the IPC 704 signal conditioner to be mounted on a DIN rail

Order Number:

IPC704 244-704-000-042 A1-B07-C200-D5-E2-F20000-G0-H0-I0

IPC704 244-704-000-042-A1-B03-C100-D100-E5-F2000-G0-H0-I0
