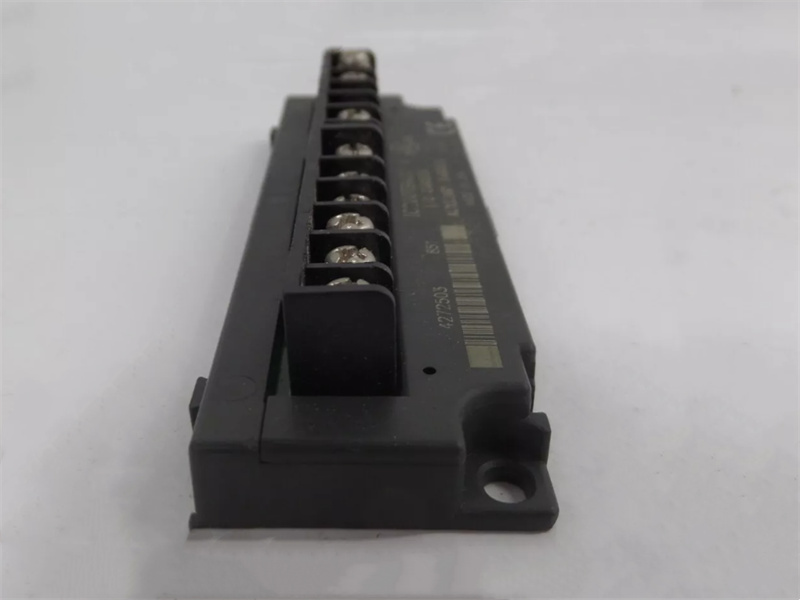

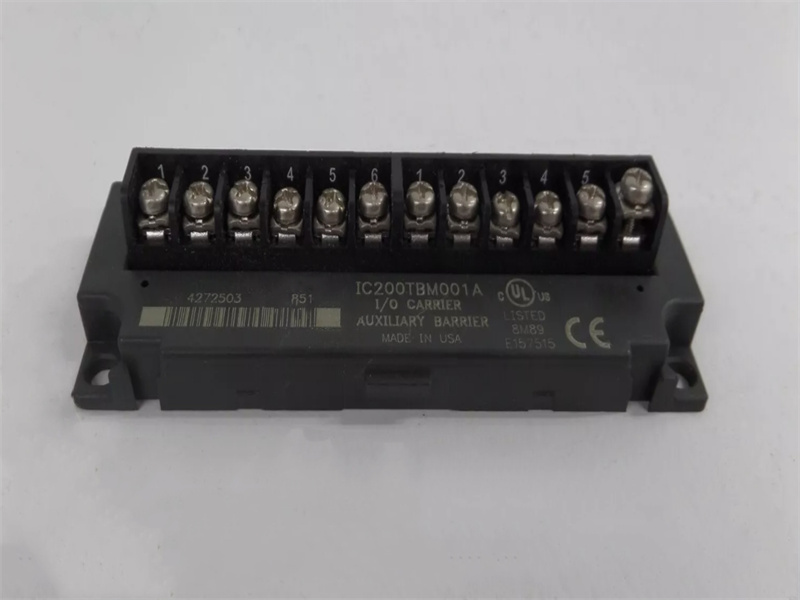

IC200TBM001H GE Versamax, Barrier-Style Auxiliary I/O Terminal Strip

The Barrier-Style Auxiliary I/O Terminal Strip (IC200TBM001) has two groups of 6 internally-bussed barrier-style wiring terminals.

Item NO.:
IC200TBM001H
Payment:
T/T
Price:
$4230
Product Origin:
U.S.A.
Shipping Port:
Xiamen
Lead Time:
5-7 days
Goods Stock:
2
Product weight:
0.5 kg

Inquiry now

product introduction

Manufacture	GE
Model	IC200TBM001H
PN No.	IC200TBM001H
Catalog	Versamax
Description	Barrier-Style Auxiliary I/O Terminal Strip
Origin	U.S.A.
HS CODE	85389091
Dimension	11107 (CM)
Weight	0.5 kg

Description:

The Barrier-Style Auxiliary I/O Terminal Strip (IC200TBM001) has two groups of 6
internally-bussed barrier-style wiring terminals. The two groups are isolated from each
other. It can be used to provide extra field wiring connections for terminal-style I/O
Carriers and Interposing I/O Terminals.

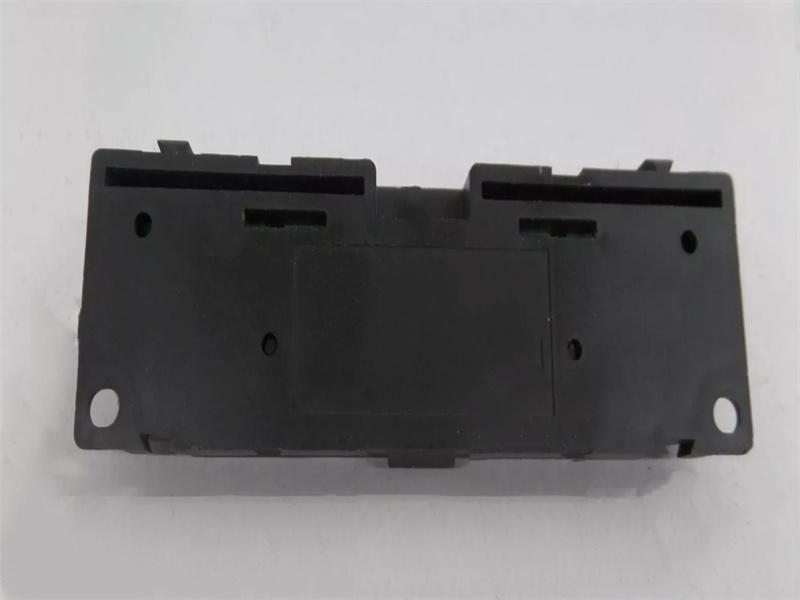

Mounting tabs on the upper edge of the Auxiliary I/O Terminal Strips insert in slots on the

bottom of the I/O Carrier or Interposing I/O Terminals for fast, convenient installation.

Additional Auxiliary I/O Terminal Strips can be connected in the same way. The Auxiliary

I/O Terminal Strip also has panel-mount holes for added stability in high-vibration

locations.

The Auxiliary I/O Terminal Strip can accommodate current levels up to 8 Amps and

voltage up to 264 VAC. Voltage levels up to 300VAC will not damage the unit.

There is no electrical connection from the Terminal-Style I/O Carrier or Interposing I/O

Terminals to the Auxiliary I/O Terminal Strip; any necessary electrical reference must be

provided.

Datasheet Link:

IC200TBM001H GE Versamax, Barrier-Style Auxiliary I/O Terminal Strip PDF Datasheet
