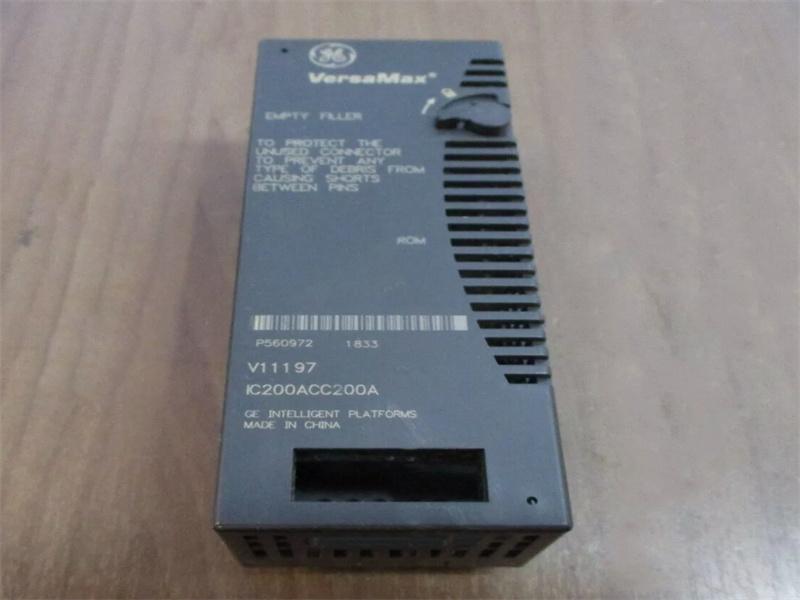

IC200ACC200C GE Versamax, Empty Filler

Description:

IC200ACC200 Empty Filler.IF only one power supply is used, it modulemay beinstalled in the empty power supply slot.

The latch on the power supply must be in the unlocked position, as illustrated. Power supplies can be installed in either or both locations on the PROFINET Scanner.

Align the connectors and the latch post and press the power supply module down firmly, until the two tabs on the bottom of the power supply click into place. Be sure the tabs are fully inserted in the slots.

Turn the latch to the locked position to secure the power supply.

To remove a Power Supply module from the PROFINET Scanner, source power into the power supply module must be turned off. The lever must be rotated to the unlocked position before detaching the Power Supply module.

Datasheet Link:

IC200ACC200C GE Versamax, Empty Filler PDF Datasheet
