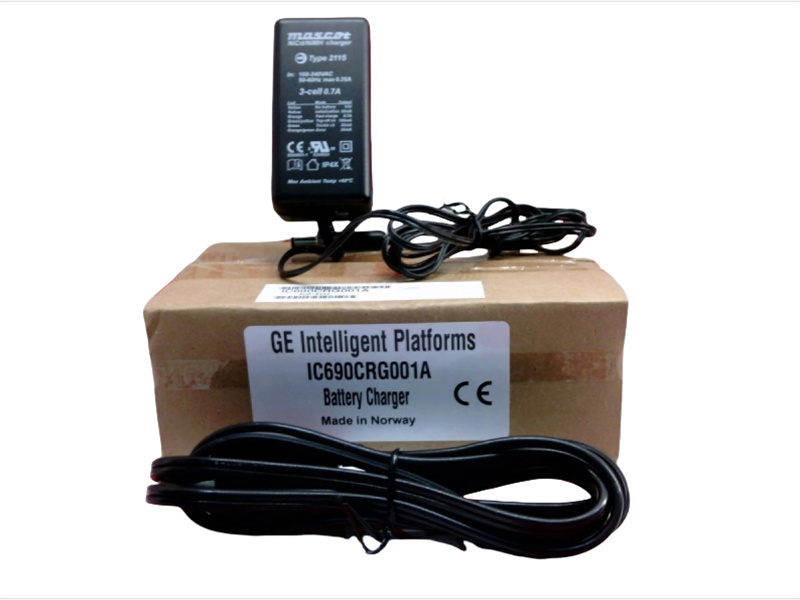

IC690CRG001A GE Versamax, Battery Charger

Description:

The IC690CGR001A Battery Charger is intended for use only with the IC690RBT001 rechargeable battery.

Operation:
Charging begins when a battery pack is connected to the charger. The LED is initially orange, and changes to red
when the fast charge starts. When the cells are fully charged, the charger goes into top-off charge mode before
switching to trickle charge mode. During the top-off charge, the LED is green with short, intermittent orange
flashes. When the top-off charge is complete, the charger goes into trickle charge mode, and the LED color
changes to green.
If the charger detects a fault, the charger will stop the fast charge current and switch to trickle charge mode. The
LED will then indicate error by blinking green and red. The fault condition can be caused by the battery pack,
wiring, or the charger.
If input power is turned off, the charger will reset. The charger starts a new charge cycle when the power is
turned back on.
