Part Number: IS200DSPXH1A
Operating speed: 60 MHz
ISBus Osc.: 80MHz
SRAM: 64Kx32 - 512Kx32
FLASH: 128Kx32 - 256Kx32
Hardware/Fuses: None
LED Light Indicators: 2 (Fault and Status)
Pin Quantity for Data Bus Function: 32
Power Supply Input: 5 V

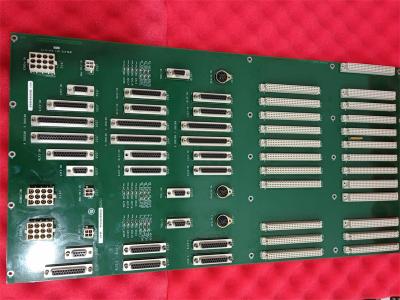

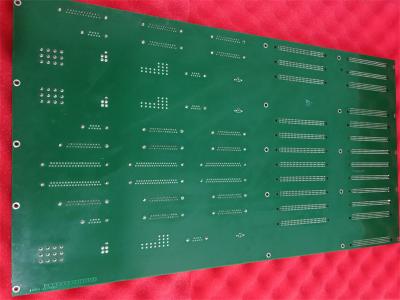

The IS200EBKP Exciter Back Plane (EBKP) is part of the control module and provides the backplane for the control boards, and the connectors for the I/O terminal board cables.
The IS200EBKP Exciter Back Plane (EBKP) is part of the control module and provides the backplane for the control boards, and the connectors for the I/O terminal board cables.

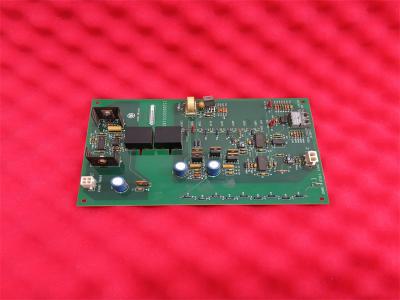

The IS200EDCFG1A board measures field current and field voltage at the SCR bridge, and interfaces to the EISB board in the control panel over a high-speed fiber-optic link.
Part Number: IS200EHPAG1B
Number of Heat Components: 6
Number of Standoffs: 4
Quantity of CPU Sockets: 2
Operating temperature: 0 to 55°C
Availability: In Stock
