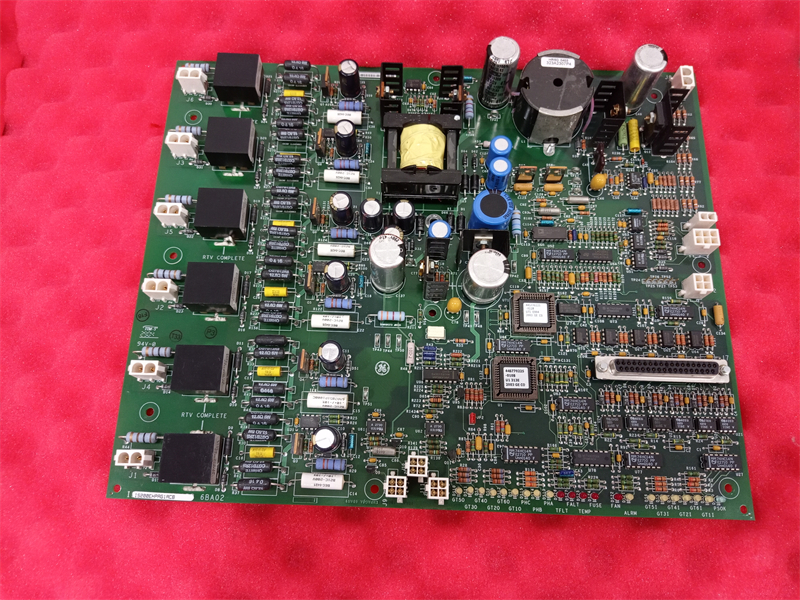

IS200EHPAG1C GE EX2100, Exciter Gate Pulse Amplifier Board

Description:

Functional Overview

The IS200EHPAG1C, a product of General Electric, serves as a critical component within the EX2100 excitation system. It is designed to execute gate commands issued by the Exciter Selector (ESEL), managing the activation of up to six Silicon Controlled Rectifiers (SCRs) situated on the Power Bridge. Furthermore, this board facilitates current conduction feedback and continuously monitors the airflow and temperature across the bridge to ensure efficient operation.

Key Capabilities

- Gate Command Handling: The board processes incoming gate signals from the ESEL, translating these directives into controlled firing sequences for the SCRs, thereby finely tuning the excitation process.

- Current Conduction Feedback Mechanism: By interfacing with the system's feedback loops, the board ensures precise supervision over current flow, enabling tight control measures.

- Bridge Environmental Monitoring: Vigilant tracking of both air circulation and thermal conditions within the bridge helps maintain peak efficiency while averting potential overheating or mechanical strain.

Power Dynamics

- Integrated Power Supply: Drawing a standard 125 V DC input from the Excitation Power Distribution Module, the board houses an internal DC/DC converter that caters to the SCR gating requirements across the entire voltage spectrum.

Interaction with the Power Bridge

- SCR Firing Control: The board meticulously controls the timing and sequence of SCR firing in response to ESEL commands, ensuring optimal excitation performance.

- Power Management for SCRs: Through its converter, the board supplies the requisite energy for SCR gating, adapting seamlessly to varying input voltages.

- Real-Time System Oversight: Continuous monitoring and feedback capabilities guarantee that the excitation system operates safely and efficiently.

Indicator Light Panel

- Power Status Indicator: Signals the proper reception of power by the EHPA.

- Gate Command Display: Reflects the status of gate commands transmitted from the ESEL.

- Output Status Indicators: Illuminates to show the condition of signals dispatched to the SCRs.

- Current Flow Indicator: Offers insights into the current traversing the bridge circuitry.

- Line Filter Status Light: Indicates the health of the line filter.

- Cooling Fan Operation Light: Confirms the cooling fan is functioning as intended.

- Temperature Warning Light: Alerts when the bridge temperature deviates from safe operating ranges.

- Alarm/Fault Alerts: Highlights any anomalies or faults, streamlining diagnostic efforts and prompt repairs.

Datasheet Link:

IS200EHPAG1C GE EX2100, Exciter Gate Pulse Amplifier Board PDF Datasheet
