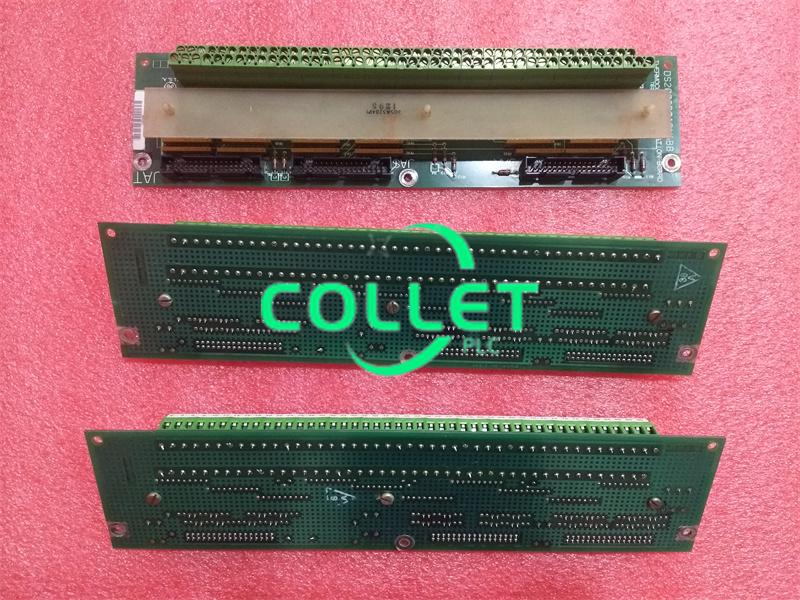

DS200TBQCG1A GE MKVe, Analog I/O Terminal Board

Description:

DS200TBQCG1A GE MKVe, Analog I/O Terminal Board

DS200TBQC-Analog Input, Milliamp InputoutputTermination Module
The Analog Input Termination Module (TBOC) is in location nine on the <Rl>,<R2> and <R3> cores. TBOC connects the 4-20 mA inputs and the LVDT/R posi-tion inputs to the TCQA board in its respective core. The 20 - 200 mA outputs areread from the TCOA boards in the respective cores. The outputs can be configured tobe either a 20 mA maximum current or a 200 mA maximum current using hardwarejumpers on the TBOC terminal board.
TBQC Connections
JBR - Writes the 4 - 20 mA input signals and reads the mA output signals to/fromthe TCQA board in the respective cores.
JFR-Writes the LVDT/R position input signals to the TCQA board in the respec-tive cores.
JBS/T - Typically not used.
JFS/T - Typically not used.
TEST - Typically not used
The hardware document in Appendix B and the signal flow diagrams in Appendix Dhave more specific information about connectors on this terminal board.

Frequently Asked Questions:

1.How many termination signals are there in DS200TBQCG1A?

There are three types of termination signals in DS200TBQCG1A. It features milliamp input and output signals, as well as LVDT input signals.

2.What is the function of DS200TBQCG1A?

DS200TBQCG1A is responsible for writing the 4-20 mA inputs and the LVDT/R position inputs to the corresponding cores on the TCQA board.

3.Which connections on DS200TBQCG1A are usually not utilized?

The connections JBS/T, JFS/T, and Test are typically not used on DS200TBQCG1A.
