Manufacture |
GE |
|
Model |
DS200CTBAG1A |
| PN No. | DS200CTBAG1A |
|
Catalog |
MKV |
|
Description |
C-Core Terminal Board
|
| Origin | USA |
| HS CODE |
85389091 |
| Dimension |
26*10*5 (CM) |
| Weight | 0.5 kg |
Description:

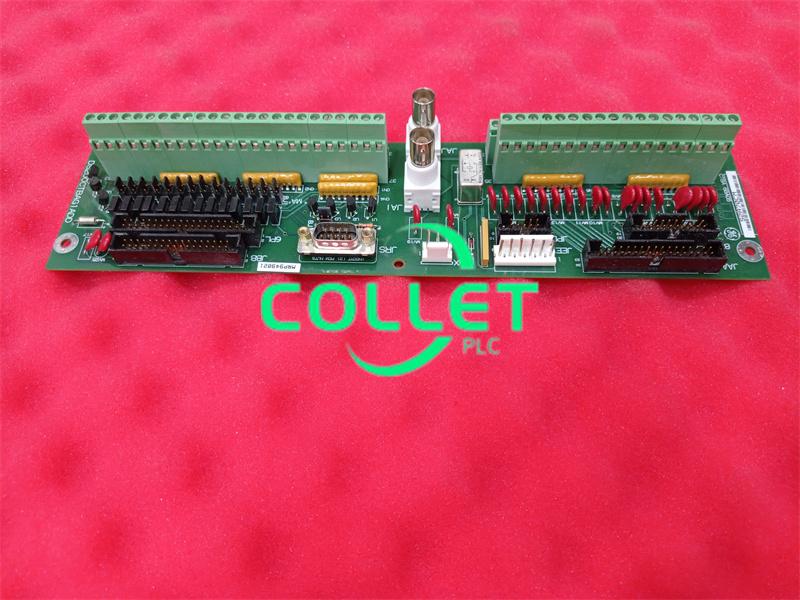

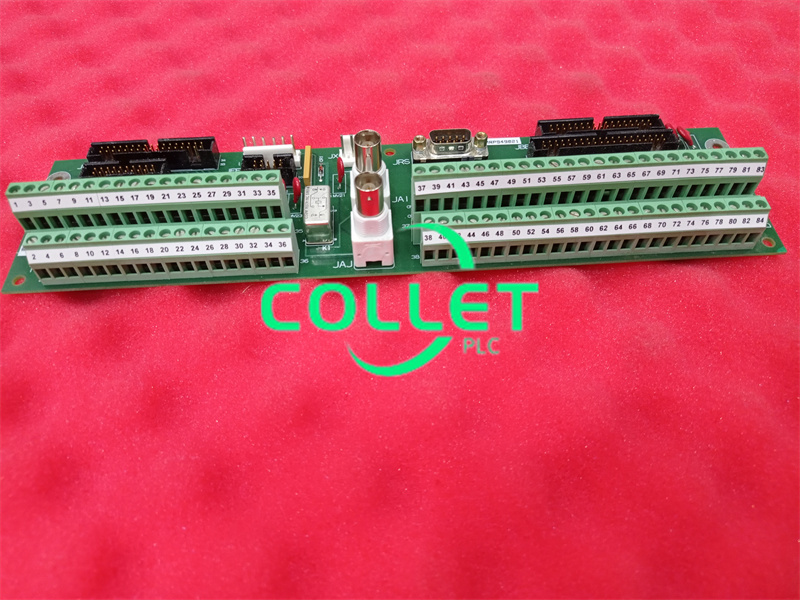

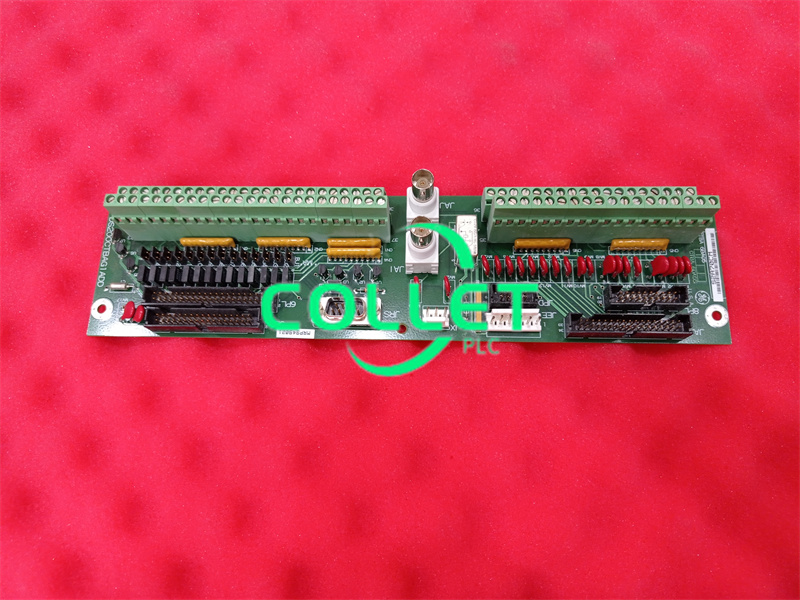

DS200CTBAG1A GE MKV, C-Core Terminal Board
DS200CTBA-Termination Module
The Analog Termination Module (CTBA) is located in the <R5> core. The CTBAterminal board has the 4-20 mA output, the 4-20 mA input, and the shaft voltageand shaft current connections. The lONET connection to the STCA board and theCOREBUS connection to the QTBA board on <Rl> are also located on the CTBAboard. Mark V LM power source monitoring is connected to CTBA from the TCPDboard in <PD>. A bypass relay allows COREBUS to communicate if power is lost toCTBA.
CTBA Connections
8PL-Carries the lONET signals to the STCA board in the <R5> core.JAA-Carries the 4-20 mA outputs from the TCCA board in the <R5> coreJAI- Used for the COREBUS connection, if not used then a termination resistorshould be attached.
JAJ - Used for the COREBUS connection, if not used then a termination resistorshould be attached.
JBB - Carries 4-20 mA inputs and the shaft voltage and current signals to the TCCAboard in the <R5> core.
JEE - Communicates the COREBUS signals with the STCA board in the <R5>core.
JPD - Carries the 24 V de power signal from the TCPD board in the <PD> core.
JX - Communicates the lONET signals with the TCDA board in the <Q5l> core.
6PL - Typically not used.
The hardware document in Appendix B and the signal flow diagrams in Appendix Dhave more specific information about connectors on this terminal board.
CTBA Hardware Configuration
BJ1 through BJ14 - Connects the NEG terminal of the respective mA input toDCOM.
BJ15 - Connects the RS232 Monitor Port (TIMN) to DCOM
Refer to Appendix A for information on the hardware jumper settings for this board.
Frequently Asked Questions:
1.What is DS200CTBAG1A a termination board for?
DS200CTBAG1A is a termination board for GE's Common Data Processor.
2.What type of input and output does DS200CTBAG1A have?
DS200CTBAG1A has Ma. input and Ma. output.
3.Where is DS200CTBAG1A mounted?
DS200CTBAG1A is mounted on the TBQA board, which has a 9-pin RS-232 connector for TIMN diagnostics for DS200CTBAG1A.
