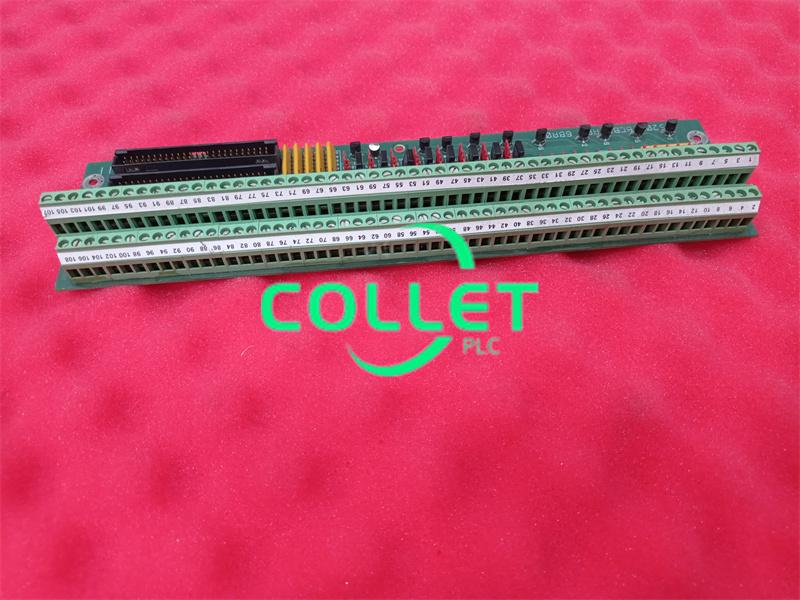

DS200TBCBG1AZZ GE MKV, RTD/Analog In Terminal Board

Description:

DS200TBCBG1AZZ GE MKV, RTD/Analog In Terminal Board

DS200TBCB-Termination Module RTD and 4-20mA input
The Termination Module RTD and 4-20 mA Input (TBCB) is in location seven ofthe <R5> core. RTD and mA input signals are landed on the TBCB terminal board.Eight of the 4 -20 mA input signals have the option to be configured using hardwarejumpers to be 0 -l mA input signals. The signals connected to the TBCB terminalboard are written to the TCCB board in the <R5> core.
TBCB Connections
JHH- Writes the mA input signals to the TCCB board in the <R5> core.Ill- Writes the RTD signals to the TCCB board in the <R5> core.The hardware document in Appendix B and the signal flow diagrams in Appendix Dhave more specific information about connectors on this terminal board.
TBCB Hardware Configuration
BJ1 through B.122-Connects the mA input signals #l through #22 to DCOM.BJ23 through BJ30-Configures mA input signals #15 through #22 to either a 0 -1mA or to a 4 -20 mA current range.Refer to Appendix A for information on the hardware jumper settings for this board.

Frequently Asked Questions:

1.How many inputs does the DS200TBCBG1AZZ possess?
The DS200TBCBG1AZZ features a total of 36 inputs. Specifically, it has 22 inputs designated for milliamp transducers and 14 inputs for 3-wire RTDs.

2.Which processor is compatible with the DS200TBCBG1AZZ ?
The DS200TBCBG1AZZ is designed to be used in conjunction with the Common Data Processor. It supplies analog signals to this processor.

3.What types of signals are received by the DS200TBCBG1AZZ ?
The DS200TBCBG1AZZ receives RTD input signals and milliamp input signals. Notably, 8 of the 4-20 mA input signals on the DS200TBCBG1AZZ can be optionally configured, via hardware jumpers, as 0-1 mA input signals. The signals received by the DS200TBCBG1AZZ are subsequently relayed to the TCCB board.

Datasheet Link:

DS200TBCBG1AZZ GE MKV, RTD/Analog In Terminal Board PDF Datasheet
