DS200DTBAG1A GE MKV, Terminal Board, Digital I/O

Description:

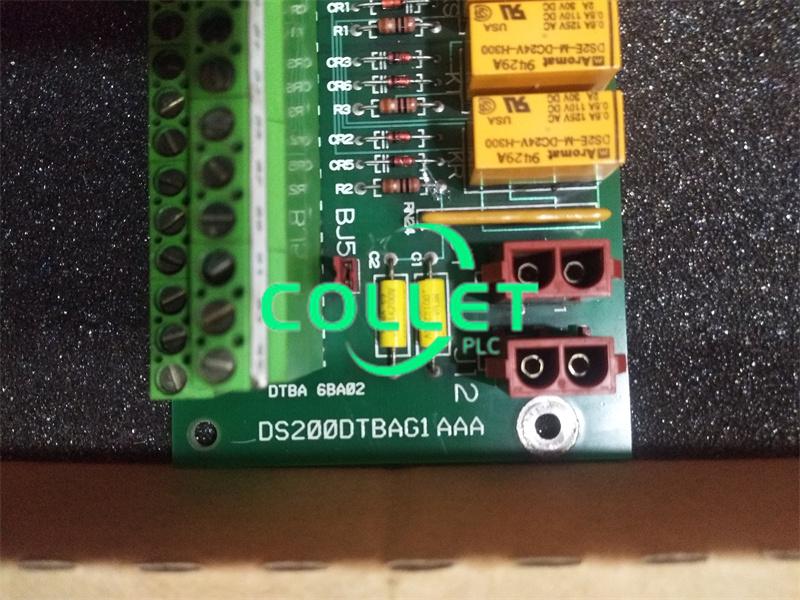

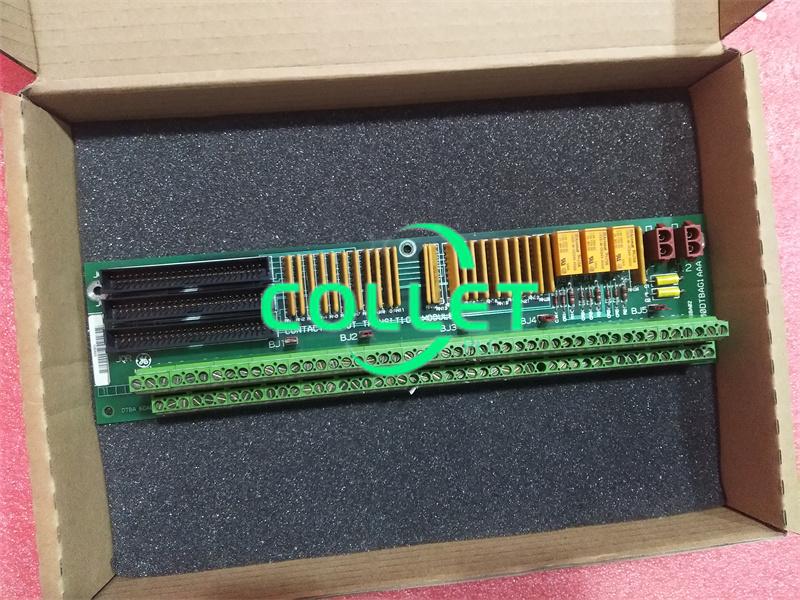

DS200DTBAG1A GE MKV, Terminal Board, Digital I/O

The DS200DTBAG1A is a Digital Contact Terminal Board produced by General Electric, belonging to the Mark V LM Series and utilized in gas turbine control management systems. Q11, Q21, and Q51 denote the positions of the Contact Input Termination Module (DTBA). The initial 46 contact inputs within the same digital core are linked to the TCDA via the DTBA. For fail-safe contact input functionality, the contact sense can be inverted by configuring the inputs in the TCDA IO Configuration. The JY terminal receives 125 V dc power supplied by the DTBA board. The TB2 terminal board enables the excitation voltage for contact inputs on the DTBA and DTBB terminal boards in the digital cores to be either 125 V dc from the core or 24 V dc from the core. The selection of the desired contact input excitation option is implemented at the factory.
To furnish a fuse-isolated and current-limited interrogation voltage for the contact inputs, the Mark V LM controller draws either 125 V dc or 24 V dc from the power distribution core. By cutting off the interrogation voltage, jumpers on the DTBA and DTBB terminal boards can be employed to isolate field grounds. These jumpers are connected in groupings of eight contact inputs. Any changes to these jumpers should only be made when the turbine is not operational. On the TCDA board, located at Position 1 in the digital I/O core, each contact input is optically isolated.
The CPU on the TCDA board assigns a timestamp to each contact input within 1 millisecond after a status change. If a contact input is selected for logging, the operator interface printer can record the timestamp whenever the state of the contact input changes. In case of a contact input circuit failure, diagnostic checks run continuously and trigger an alarm.

Frequently Asked Questions:

1.What is the input voltage range of DS200DTBAG1A?
DS200DTBAG1A can accommodate input voltages ranging from 24 VDC to 125 VDC.

2.Which contact inputs is the DS200DTBAG1A termination board designed for?
It is intended for digital contact inputs 1 through 46 as a termination point.

3.What types of processors are compatible with the DS200DTBAG1A?
The DS200DTBAG1A is compatible with either the Common Data processor core or the digital I/O core associated with the three control processors.

Datasheet Link:

DS200DTBAG1A GE MKV, Terminal Board, Digital I/O PDF Datasheet
