Manufacture |
Vibration |
Model |
CE620 |
PN No. |
444-620-000-011 |
Catalog |
NIL |
Description |
proximity transducer |
Origin |
Switzerland |
HS CODE |
85389091 |
Dimension |
6*6*4 (CM) |
Weight | 0.4 kg |
DESCEIPTION:

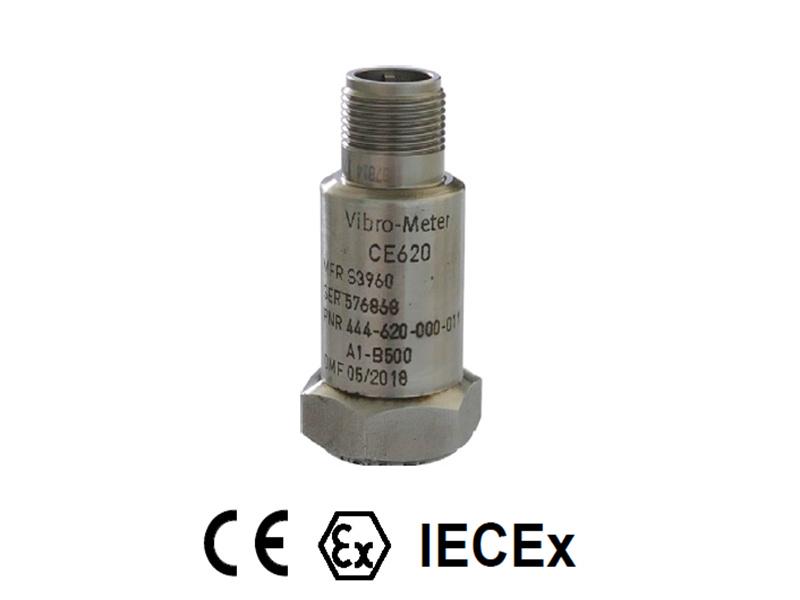

The CE620 piezoelectric accelerometer with
integrated electronics from Meggitt’s
Vibro-Meter® product line is a general-purpose
vibration sensor designed for the monitoring and
protection of machinery in harsh industrial
environments.
The CE620 is available in different versions for
different industrial environments: standard
versions for use in standard (non-hazardous) areas
and Ex versions for installation in hazardous areas.
It is an industry standard IEPE (integrated
electronics piezo electric) vibration sensor that
requires a constant current power supply and
provides a dynamic vibration output signal
(AC voltage) on a bias level (DC voltage). The
CE620 is available with a sensitivity of either
100 or 500 mV/g.
A range of 2-wire shielded cables are available to
connect the sensor to the monitoring system,
depending on the environment.
For specific applications, contact your local
Meggitt representative.
