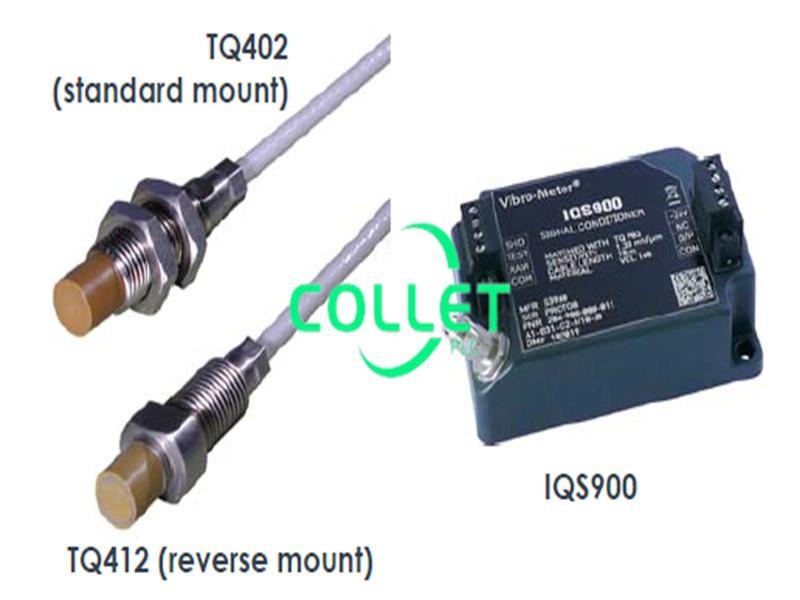

111-412-000-013 TQ412 proximity transducer

DESCEIPTION:

General
Transducer input requirements
:
High-frequency power source from an IQS900 signal conditioner
Environmental
Temperature ranges
•Transducer
:
−40 to +180°C with drift <5% (operating).
+180 to +220°C with drift >5% (short-term survival).
•Transducer and cable
:
−40 to +195°C if used in an Ex Zone
•Cable, connector and optional protection
:
−40 to +200°C
Protection rating
(according to IEC 60529)
:
The head of the proximity transducer (transducer tip and integral cable) is rated IP68
Vibration
(according to IEC 60068-2-26)
:
5 g peak between 10 and 500 Hz
Shock acceleration
(according to IEC 60068-2-27)
:
15 g peak (half sine-wave, 11 ms duration)
Physical characteristics
Transducer construction
:
Wire coil Ø8 mm, Torlon (polyamide-imide) tip, encapsulated in stainless steel body (AISI 316L) with high-temperature epoxy glue
Integral and extension cables
:
FEP covered 70 Ω coaxial cable, Ø3.6 mm
Connectors
:
Self-locking miniature coaxial connectors.
Note: When connecting, these should be hand-tightened until locked.
Optional protection
•Flexible stainless steel hose
(protection tube)
:
The stainless steel hose provides additional mechanical protection but is not leak-tight
•FEP sheath
(extruded fluorinated ethylene propylene)
:
The FEP sheath provides resistance to almost all chemicals and low permeability to liquids, gases and moisture. It is also flexible, low friction and mechanically tough.

NEW AND ORIGIN ITEM IN STOCK

WITH ONE YEAR WARRANTY

Hope anyone enquire from us,pls click this sales6@nseauto.com
1. lower your support costs
2, Provide on-going availability of automation replacement parts
Quantity available: 1
Warranty: 12 months.
Lead time: 1-2 working days.
Terms of payment:T/T and Western Union.
Courier partners: DHL, UPS, TNT, FedEx and EMS.
