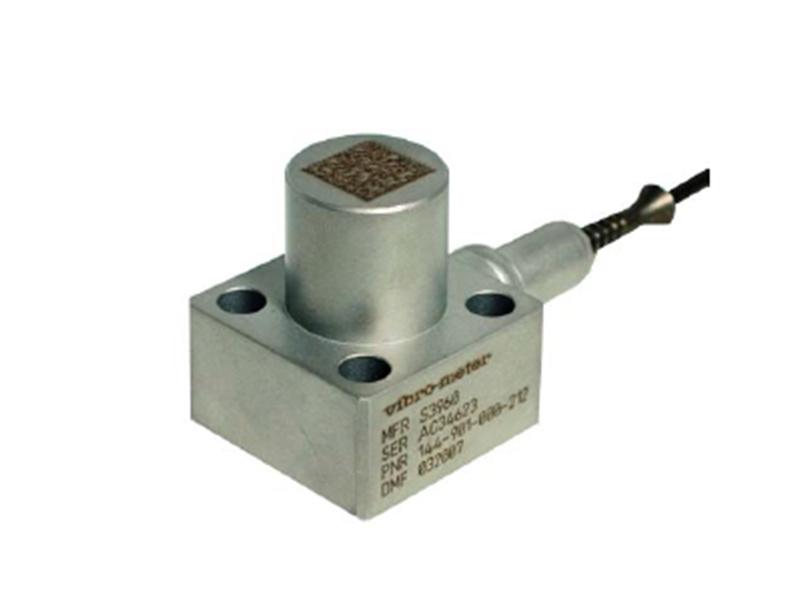

CA901 144-901-000-282 Piezoelectric Accelerometer

DESCEIPTION:

The use of VC2 type single crystal material in the CA 901 compression mode accelerometer provides an extremely stable instrument.
The transducer is designed for long-term monitoring or development testing. It is fitted with an integral mineral insulated cable (twin conductors) which is terminated with a Lemo or a high-temperature connector from Vibro-Meter.

GENERAL
Input power requirements
:
None
Signal transmission
:
2 pole system insulated from casing, charge output
Signal processing
:
Charge converter
OPERATING
(at +23°C ±5°C)
Sensitivity (at 120 Hz)
:
10 pC/g ±5%
Dynamic measuring range (random)
:
0.001 g to 200 g peak
Overload capacity (spikes)
:
Up to 500 g peak
Linearity
:
±1% over dynamic measuring range
Transverse sensitivity
:
< 5%
Resonance frequency (mounted)
:
> 17 kHz nominal
Frequency response
•3 to 2800 Hz nominal
:
±5% (lower cutoff frequency is determined by the electronics used)
•2800 to 3700 Hz
:
< 10%
Internal insulation resistance
:
Min. 109 Ω
Capacitance (nominal)
•Pole to pole
:
80 pF for transducer + 200 pF/m of cable
•Pole to casing
:
18 pF for transducer + 300 pF/m of cable
