Manufacture |
ABB |
|
Model |

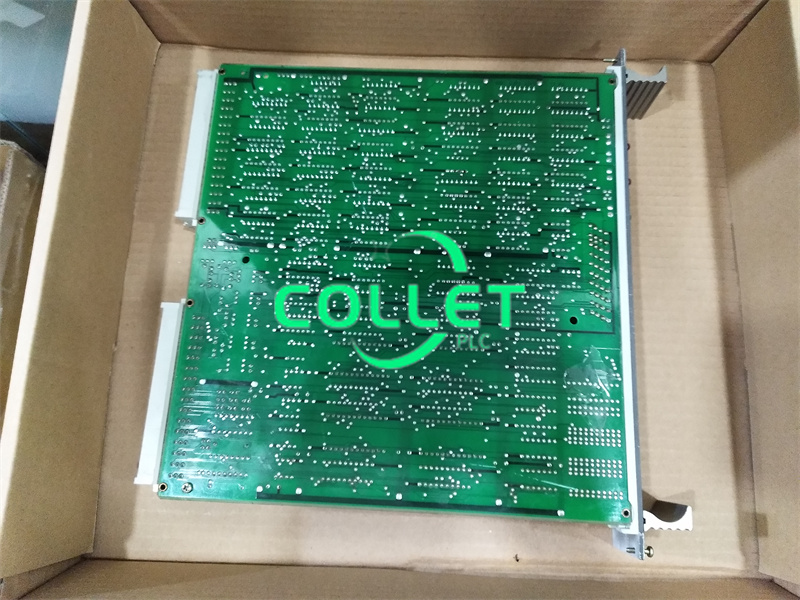

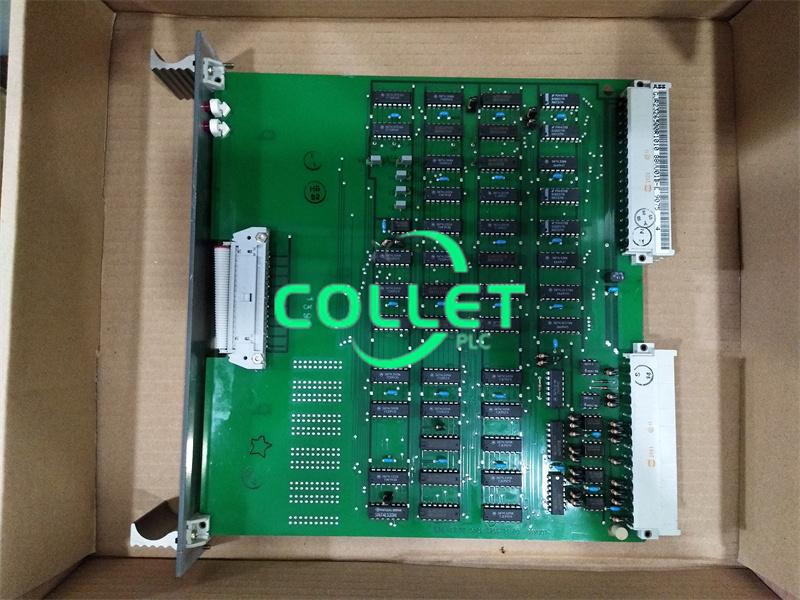

88VU01C-E |
| PN No. |
GJR2326500R1010 |
|
Catalog |
Advant OCS with Master SW |
|
Description |
Coupling Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
Description:
The coupling odule for monitoring station is used within a PROCONTROL master station.
The processor of the master station exchanges information with the coupling module.It receives permission from the coupling module to carry out data transfer and reports the end of the transfer cycle to the module. The release of data transfer is dependent on certain conditions in the total system.
The module is available in two versions:
88 VU01-E/R1010: Equipped with function PROM foruse in master station A
88 VUO1-E/R1011: Equipped with function PROM foruse in master station B
The module can be plugged into each of the two master stations of the PROCONTROL bus system, but is only available once for each station.It isprovided with one standard interface to the bus of the master station as well as with interfaces to the monitoring station(88 UB01,88 UM01)and to the couping module for monitoring station of the second(redundant)master station.
Six light-emitting diodes are provided at thefront of the module.They serve to indicate disturbances (both module-internal and system disturbances)that have been detected.Furthermore,they indicate whether data transfer is taking place on the connected bus system(see "Annunci-ation functions").
