Manufacture |
ABB |
|
Model |
88VP02D-E |
| PN No. |
GJR2371100R1040 |
|
Catalog |
Advant OCS with Master SW |
|
Description |

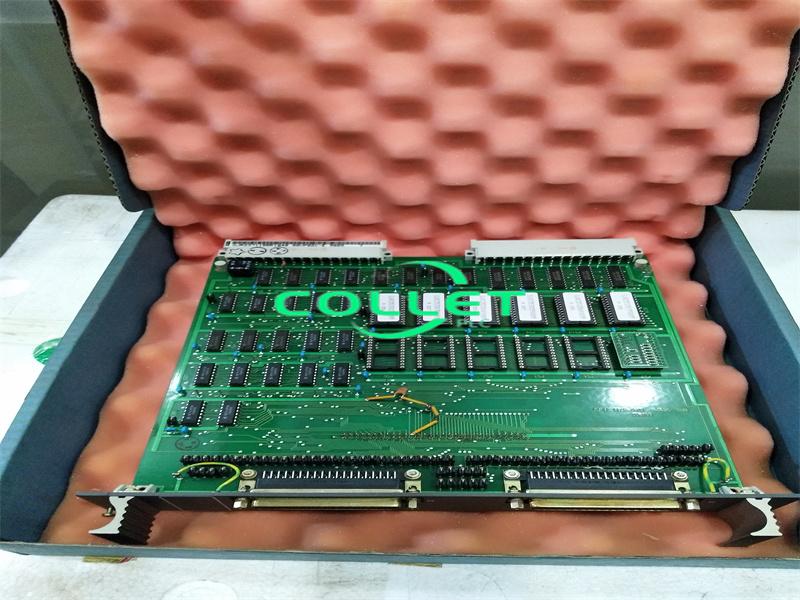

Master Station Processor Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.55 kg |
Description:
The master station processor module is used with-in a PROCONTROL master station.
Together with the modules 88 VA01/VA02(control module for transfer procedure) and 88 VT01/VT02(telegram handling module) it fors part of thecentral processor within the master station. This processor controls and monitors the entire data transfer on the connected PRCONTROL remote bus system.
The module can be plugged into each of the two master stations of the PRCONTROL bus system, but is only available once for each station.It is provided with two standard interfaces:one of these is used to link the module to the master station bus to which all modules of the master station (including master station coupling modules 88 VK0l)are connected.The second one is for the general-bus which only connects the modules 88VP01/VPO2,88VA01/VA02 and 88VTO/VTO2 with each other.

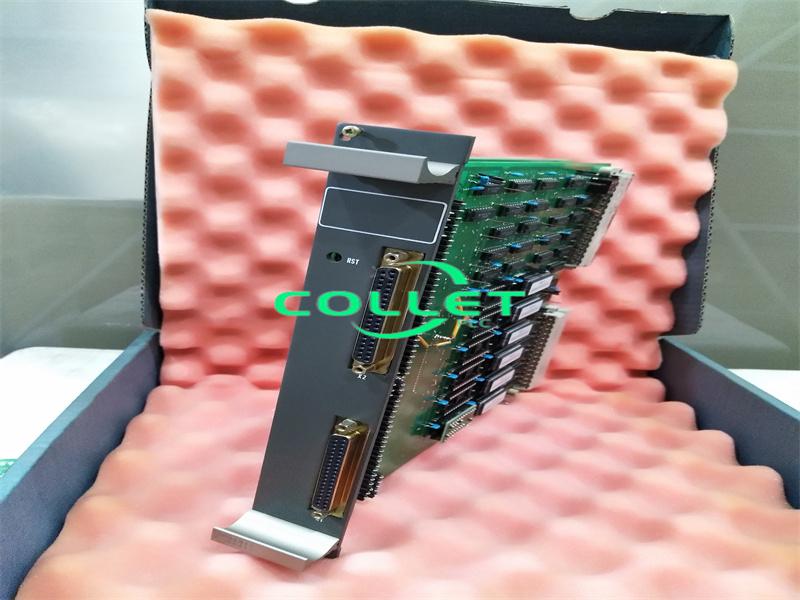

Two connectors and one push button are provided at the front of the module.
A logic analyzer can be connected to this connector. With this anayzer,all important signals,program sequences and altelegrams canbe measured for diagnostic functions.
By pressing the pushbutton RST, the entire masterstation can be reset and,thus, a defined initial state established.
sheet Link:
88VP02D-E ABB GJR2371100R1040 Master Station Processor Module PDF Datasheet
