Manufacture |
ABB |
Model |
89NG03 |
PN No. |
GJR4503500R0001 |
Catalog |
Advant OCS with Master SW |
Description |

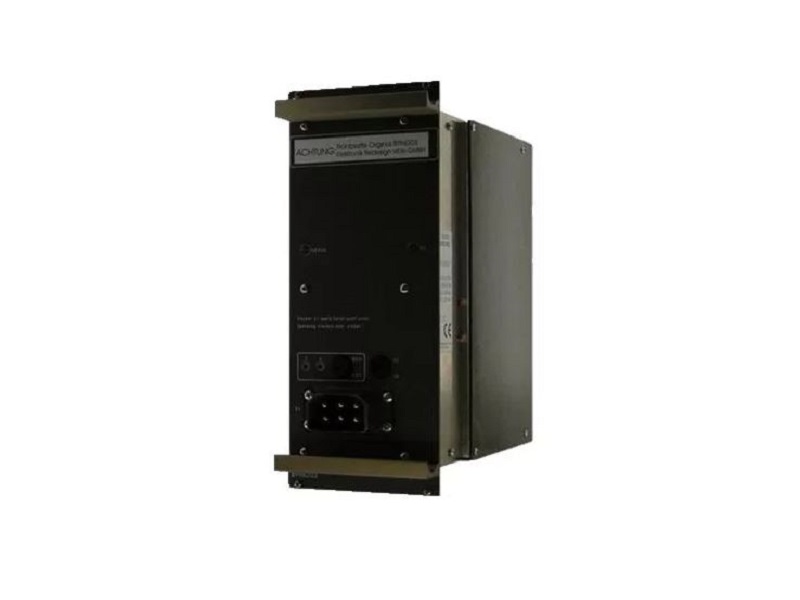

Power Supply Module |
Origin | Sweden |
HS CODE |
85389099 |
Dimension |
1.98*0.2*2.61 (CM) |
Weight | 0.55 kg |
Description:
Application:
The power supply module 89 NG03 is used for switching and generationg the voltages required in a station bus subrack ofa PROCONTROL multi-purpose processing station. Since each module subrack has its own voltage supply, the power supply devices are used altogether 4 times for the multipurpose processing station.
The printed circuit board 89 lL01,although a self-contained module, is a permanent accessory to the power supply module 89 NG03.It is provided with a row of connectors for connecting cables and for forming a support point(see moduledescription GKWE 705 445).
Features:
The power supply module is fed via a plug on the front panel. The process voltage US = +24 VDC is switched depending on the internal voltage UD. The process voltage UV= -24VDC,the reference conductor Z,the annunciation and flashing voltage are only connected through the module.
The voitages UB+ = +24 VDC and UD+ = +5 VDC (withreference conductor ZD) on the bus side and required by themodules are generated via DC/DC converters and are potential-isolated.
Caution:
The module must not be plugged or withdrawn when live, in order to prevent destruction.
The voltages US, UB + and UD supplied to the station bus are monitored by the module. In the event of a disturbance, an annunciation and/or switchoff takes place.
sheet Link:
89NG03 ABB GJR4503500R0001 Power Supply Module PDF Datasheet
