Manufacture |
ABB |
Model |
216GW62 |
PN No. |
HESG324008 |
Catalog |
RE. 216 1MDU02005-EN |
Description |
Input transformer unit |
Origin | Germany |
HS CODE |
85389099 |
Dimension |
32*26*5 (CM) |
Weight | 3.25 kg |
Description:

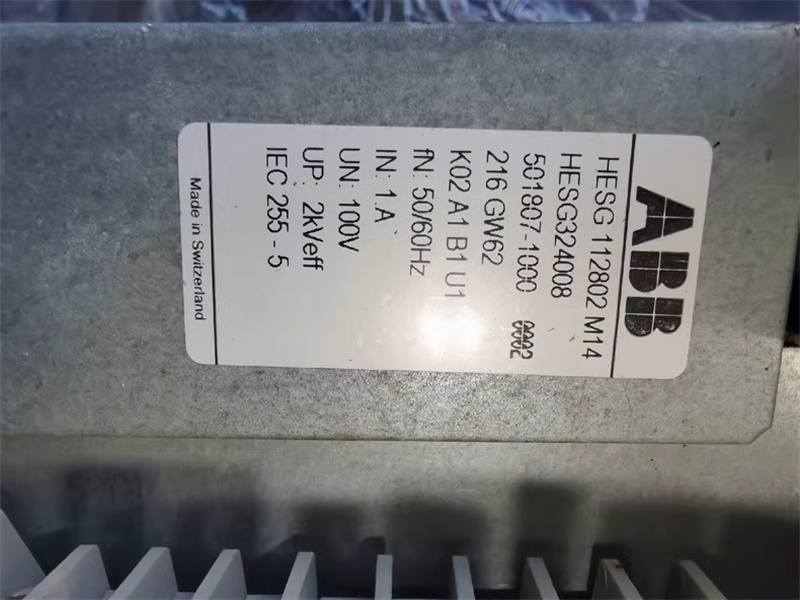

The input transformer unit Type 216GW62 corresponds to the 216GW61 unit described.; the only difference is that it complies with DIN Protection Class IP 30. to shows the c.t's and v.t's fitted and the terminal connections for the alternative versions available. In the case of the typical version K1, 6 protection c.t's enable the currents at the generator terminals to be measured and differential protection for the generator becomes possible. One metering c.t. measures the current more accurately, for example, for the reverse power function. Two v.t's are used to detect stator and rotor E/F's and three v.t's measure the voltage at the generator terminals.
sheet Link:
216GW62 HESG324008 Input transformer unit PDF Datasheet
