Manufacture |
ABB |
|
Model |
216NG63 |
| PN No. |
HESG324436R3/A HESG324428 |
|
Catalog |
RE. 216 1MDU02005-EN |
|
Description |
Relays-and Opto-coupler module |
| Origin | Germany |
| HS CODE |
85389099 |
| Dimension |
32*26*5 (CM) |
| Weight | 0.3 kg |
Description:

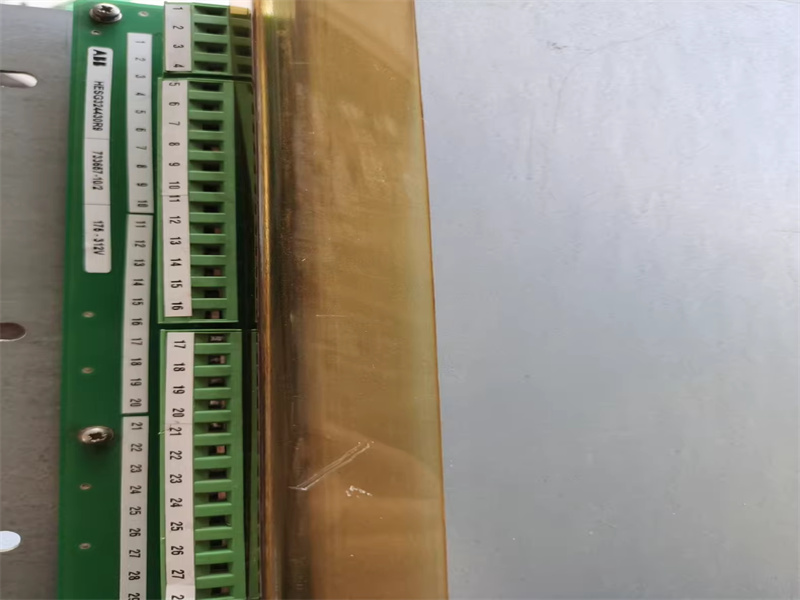

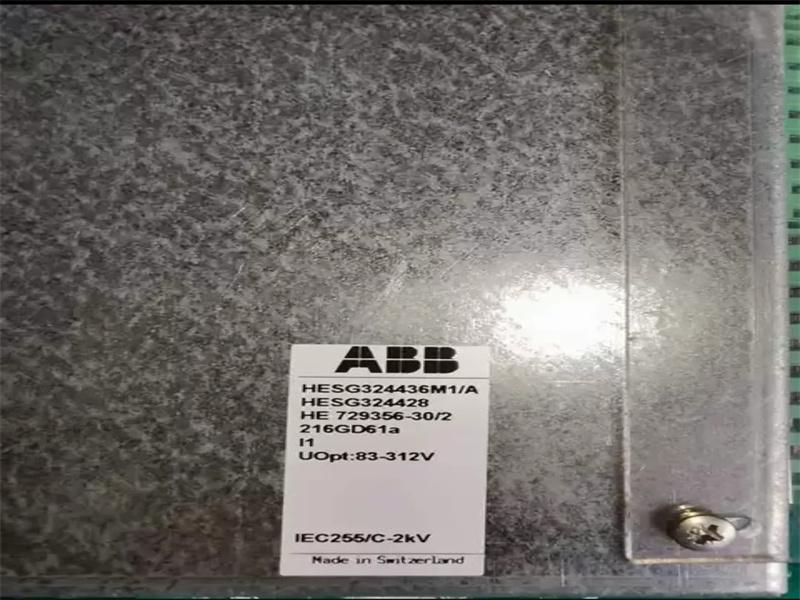

The 216GD61 unit combines various binary in- and outputs:
16 opto-coupler inputs:
for controlling the tripping unit 216DB61. Contrary to the unit 216GD61, the unit 216GD61a all channels 1 to 16 are designed for the voltage range 82...312 V DC. Channel 1 is intended as a reset I/P and is activated by the optional reset button. All the I/P’s can be adapted for other voltages in the range 20 V DC to 312 V DC by fitting a series resistor with the corresponding value
8 tripping relays:
controlled by the tripping unit 216DB61. In each case, one circuit is connected to terminals, which is made by two contacts in series.
16 signalling relays:
controlled by the binary O/P unit 216AB61. The N/O contact of all the relays and the N/C contact of relays 1...4 are connected to terminals. The unit is supplied at 24 V DC and provision is made for redundant supplies. The location of the 216GD61 unit
16 opto-coupler inputs:
for controlling the tripping unit 216DB61. Contrary to the unit 216GD61, the unit 216GD61a all channels 1 to 16 are designed for the voltage range 82...312 V DC. Channel 1 is intended as a reset I/P and is activated by the optional reset button. All the I/P’s can be adapted for other voltages in the range 20 V DC to 312 V DC by fitting a series resistor with the corresponding value
8 tripping relays:
controlled by the tripping unit 216DB61. In each case, one circuit is connected to terminals, which is made by two contacts in series.
16 signalling relays:
controlled by the binary O/P unit 216AB61. The N/O contact of all the relays and the N/C contact of relays 1...4 are connected to terminals. The unit is supplied at 24 V DC and provision is made for redundant supplies. The location of the 216GD61 unit
sheet Link:
216GD61A ABB HESG324436R3/A HESG324428 Relays-and Opto-coupler module PDF Datasheet
