Manufacture |
ABB |
|
Model |
TC514V2 |
| PN No. |
3BSE013281R1 |
| Catalog | Panel 800 |
| Description |
Twisted Pair/Optical Fiber modem |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
16*12*5.8 (CM) |
| Weight | 0.34 kg |

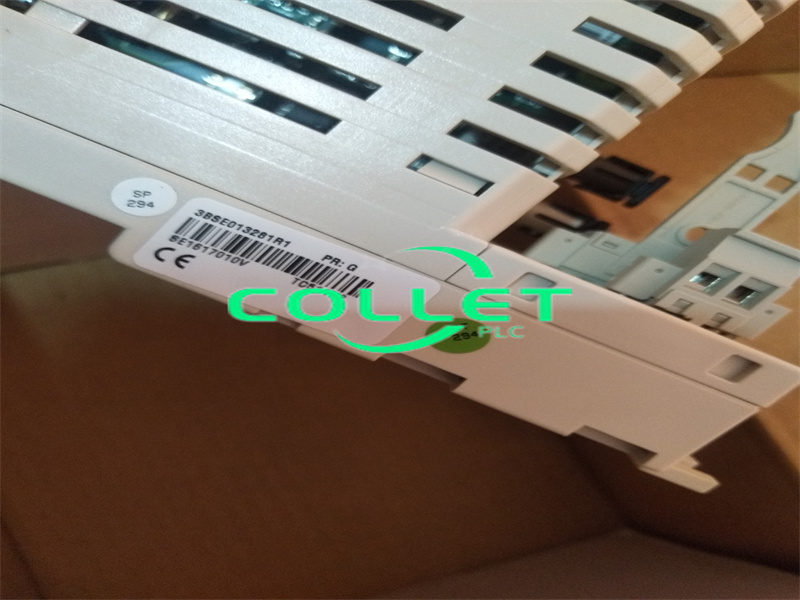

Description:
ABB TC514V2 3BSE013281R1 is a Twisted Pair/Optical Fiber modem manufactured by ABB.
Advant Fieldbus 100 twisted pair to opto repeater (optical fiber).
Power 24V d.c. Rated isolation 50V.
Note! This part is exempted from the scope of 2011/65/EU (RoHS)
as provided in Article 2(4)(c), (e), (f) and (j) therein
(ref.: 3BSE088609 – EU DECLARATION OF CONFORMITY
- ABB Advant Master Process Control System)
Mounting/Demounting of Twisted Pair/Optical Fiber Modem TC514
The Twisted Pair/Optical Fiber Modem TC514 is mounted on a DIN-rail. The DINrail is mounted to a metal sheet in a cabinet or on an enclosure wall with fastening screws every 100 mm, to ensure a good chassis ground connection. The modem has a snap locking device that attaches it to the mounting rail. It is possible to mount the modem both vertically and horizontally. To mount the modem, place it on the top edge of the DIN-rail, release the rail latch with a flat bad screw driver and snap the bottom mechanism into place. When the unit is in place on the DIN-rail and in vertical position, take away the screw driver and the rail latch will fix the unit in position on the DIN-rail. Release the unit from the DIN-rail in a similar way.
Frequently Asked Questions:
1.Which product can replace TC514V2?
TC514V1

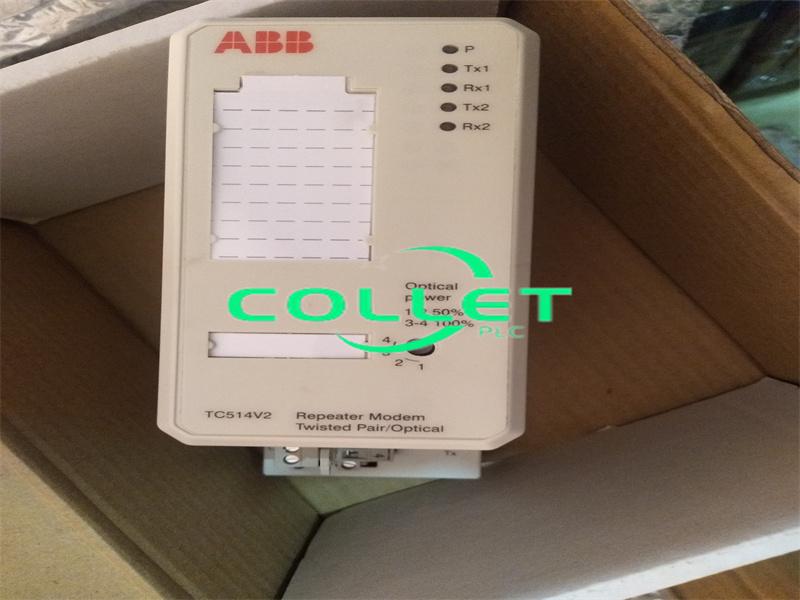

2.What do the indicator lights on the TC514V2 mean?
P：Power LED (green)
Tx1：Twisted Pair (amber)
Rx1：Twisted Pair (amber)
Tx2：Optical Fiber (amber)
Rx2：Optical Fiber (amber)
Datasheet Link:
TC514V2 ABB 3BSE013281R1, Twisted Pair/Optical Fiber modem PDF Datasheet
