Manufacture |
ABB |
|
Model |
DI814 |
| PN No. |
3BUR001454R1 |
| Catalog | S800 I/O |
| Description |
Digital Input Module |
| Origin | Sweden/Malta/India |
| HS CODE |
85389091 |
| Dimension |
10*12*4.5 (CM) |
| Weight | 0.15 kg |
Description:

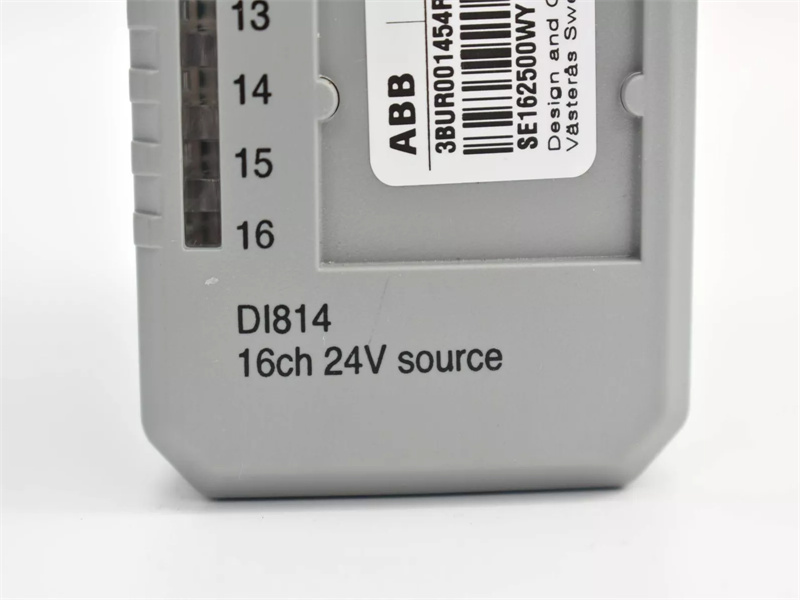

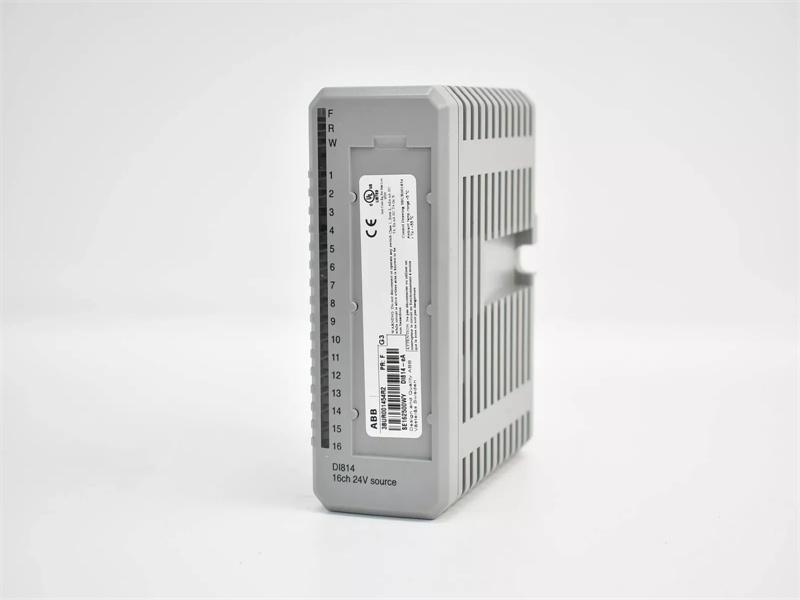

ABB DI814 3BUR001454R1 is a Digital Input Module manufactured by ABB.
The input voltage range is 18 to 30 volt dc and the input current source is 6 mA at 24 V. The inputs are divided into two individually isolated groups with eight channels and one voltage supervision input in each group. Every input channel consists of current limiting components, EMC protection components, input state indication LED and optical isolation barrier. The process voltage supervision input give channel error signals if the voltage disappears. The error signal can be read through the ModuleBus.
Features and benefits
-16 channels for 24 V d.c. inputs with current sourcing
-2 Isolated groups of 8 with voltage supervision
Input status indicators
Frequently Asked Questions:
1.What is input range of DI814?
Input voltage range, "0" -30 .. 5 V
Input voltage range, "1" 15 .. 30 V
2.What is Maximum field cable length of DI814?
600 meters (656 yards)
Datasheet Link:
DI814 ABB 3BUR001454R1, Digital Input Module PDF Datasheet
