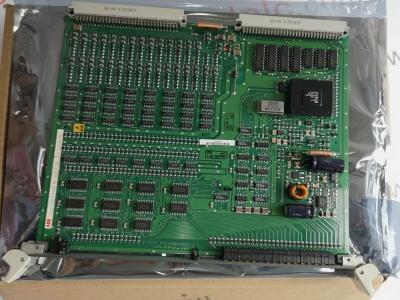

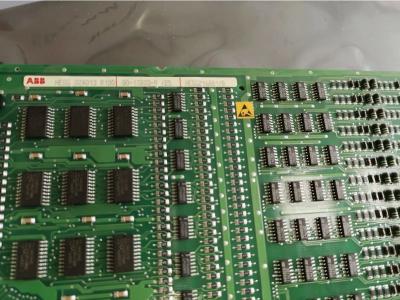

81AA02E ABB GJR2385200R1010 has a size of 6 units, with 2 divisions and a depth of 160 mm. The connectors used is according to DIN 41612(2 x for station ---bus connection, 48 ---pole, edge ---connector type F; 1 x for process connection,32 ---pole, edge ---connector type F). The total weight of the board is approximately 0.8 kg.
Input isolation in pack: Optical isolation to 1500 V
Input Filter: Hardware filter, 4 ms
Ac voltage rejection: 60 V rms
Number of relay command channels: 12
Number of input channels: 24 DI and 12 form C
Operating Temperature: 0 to 60°C
