Manufacture |
ABB |
|
Model |
81AA02E |
| PN No. |

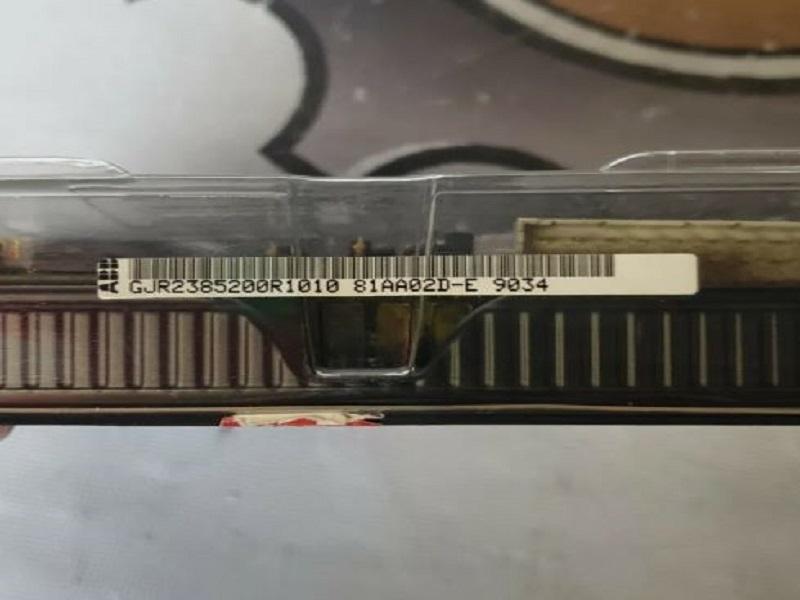

GJR2385200R1010 |
|
Catalog |
PROCONTROL 14 |
|
Description |
Analog Output Module |
| Origin | Sweden |
| HS CODE |
85389099 |
| Dimension |
1.98*0.2*2.61 (CM) |
| Weight | 0.8 kg |
The output module is used to output analog signals in the signal range ---20 ... 0 ... +20 mA. It is used, for example, to activate indicating instruments. The module contains 4 function units. It is thus possible to output 4 different analog signals simultaneously. The outputs are potential ---isolated from each other as well as from the system.

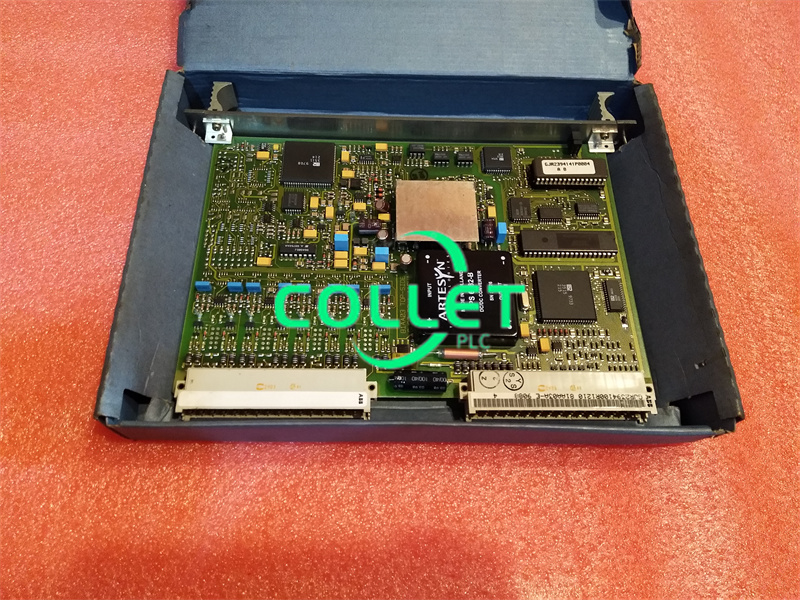

The module consists of two printed circuit boards. The output printed circuit board is equipped with connectors X1 and X2. Connector X1 contains all process inputs.
