Manufacture |
ABB |
Model |
81AB10 |
PN No. |
GKWE850100R0100 |
Catalog |
PROCONTROL 13 |
Description |

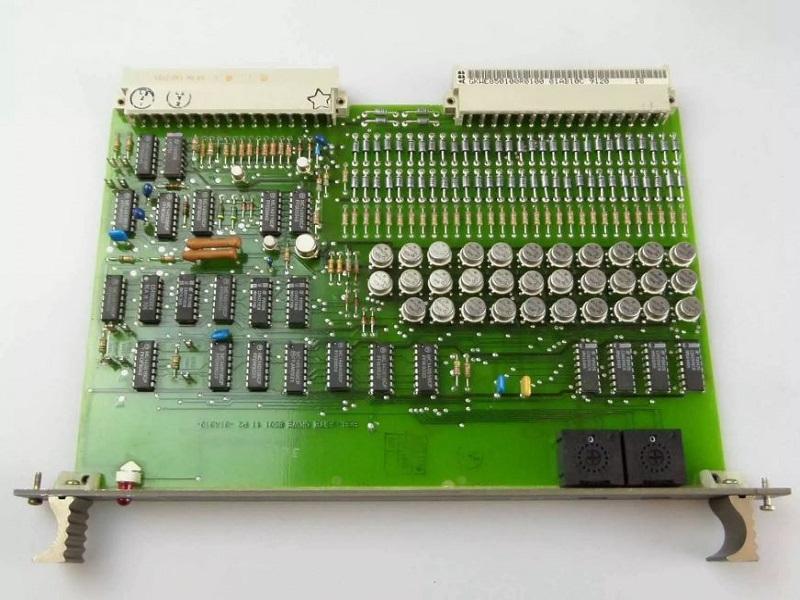

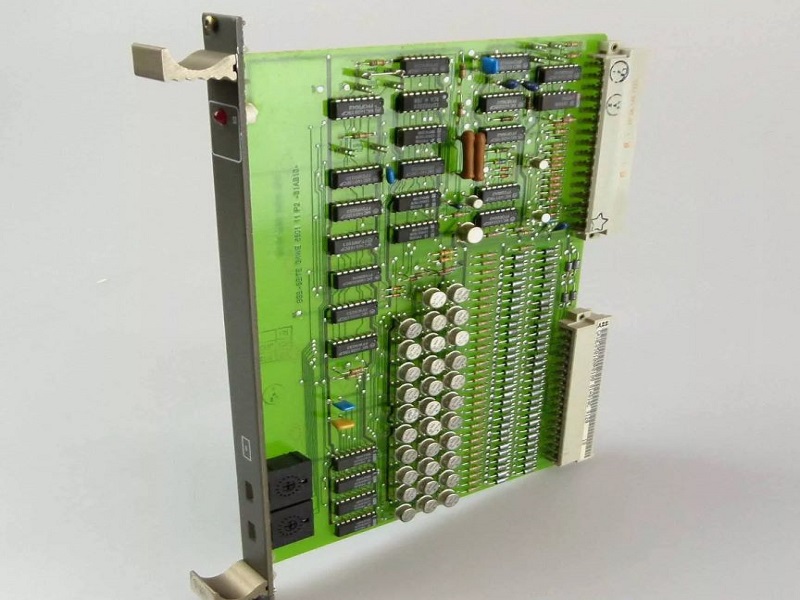

Output Module for Binary Signals |
Origin | Sweden |
HS CODE |
85389099 |
Dimension |
1.98*0.2*2.61 (CM) |
Weight | 0.55 kg |
The output module is used to activate electronic inputs,relays and lamps.
It converts the serial and coded data arriving from the IO-bus to parallel 24 V binary signals which are output via module outputs AB1-AB32 of module version R0100 and AB01-AB16 of module version R0200.
The line for returning the signals to 0 V(z) must be provided outside the module.
The outputs of the module can control the following loads :
-up to 50 standard loads PROCONTROL electronics inputs or
-one lamp with a rated current of 100mA at a rated voltage of 24 V or
-one relay with 100mA current consumption.The quenching diode required for this is already incorporated in the module.
-Other loads upto 100 mAcurrent consumption.
The module is available in two different hardware versions :
-81 AB10-E/R0100 for output of 32 binary signals
-81 AB10-E/R0200 for output of 16 binary signals
The module, which has a space requirement of division, can be plugged into every multi-purpose processing station of the PROCONTROL bus system.
It incorporates a standard interface SEA to the IO-bus .
The module receives the binary signals to be output from the PROCONTROL bus system via the IO-bus and the bus coupling module in the form of telegrams .
The code switches for setting the module address can be set with the module withdrawn,and read through a cut-out on the module front.
The binary signal outputs have their own operating voltage supply to eliminate any interaction between the bus side and the process side.No potential isolation is provided.
Any disturbances in data input and data output as well as disturbances in the processing section are detected and signaled by a red light-emitting diode ST on the module front.
At the same time,disturbance annunciation signa SME is output via the IO-bus.
The module occupies two successive addresses inversion 8lAB10/R0100, and one address in version 81 AB10/R0200 on the IO-bus.
