Manufacture |
EPRO |
|
Model |
MMS6350/DP |
| PN No. | MMS6350/DP |
|
Catalog |
DOPS AS |
|
Description |

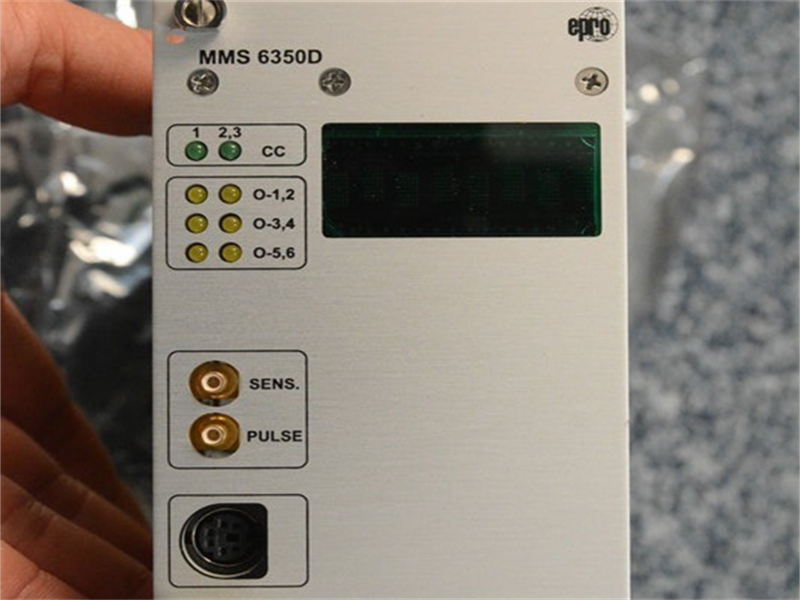

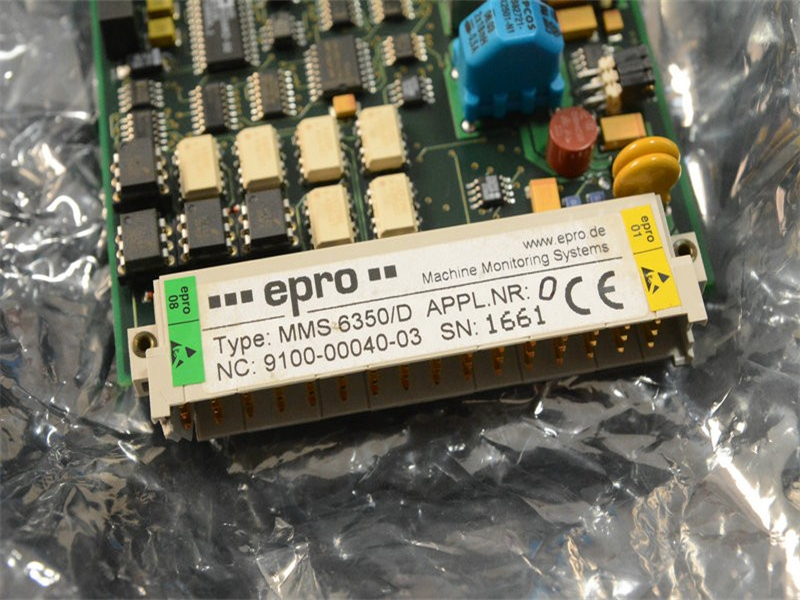

Speed measurement card with PROFIBUS DP |
| Origin | Germany |
| HS CODE |
85389099 |
|
Dimension |
18*13*4 (CM) |
| Weight |
0.4 kg |
Description:
MMS6351/10 is Backplane for System DOPS AS, manufactured by EPRO.MMS6350/DP EPRO Speed measurement card with PROFIBUS DP
Transmission data Profibus DP:
There are 5 analog, 13 binary and 6 set/reset functions at disposal for the output via the optional Profibus DP.
The following functions are possible:
- Current speed
- Scaled speed
- Machine acceleration
- Maximum speed
- Direction of rotation
- Sensor break
- Sensor short-circuit
- Gap – value
- Switching state of function
outputs 1 to 6
- Live signal to indicate subsequent electronic circuits that the function of the electronic is OK.
- Control inputs to reset individual latched messages and alarm outputs as well as three control inputs to activate the test values.
The baud rates of the Profibus DP data transmission is between 9600 and 12000 KBit/s.
Frequently Asked Questions:
1.What is the payment term?
Wire transfer only.
2.When does the warranty period start?
One year from the time the client receives the goods.
Datasheet Link:
MMS6350/DP EPRO Speed measurement card with PROFIBUS DP PDF Datasheet
