Manufacture |
EMERSON/EPRO |
|
Model |
KJ3223X1-BA1 |
| PN No. |
KJ3223X1-BA1 |
| Catalog | Delta V |
|
Description |
AI 16-CH 4-20mA HART |
| Origin | U.S.A./Germany |
| HS CODE |
85389091 |
| Dimension |
10*6*2 (CM) |
| Weight | 0.2 kg |
Description:

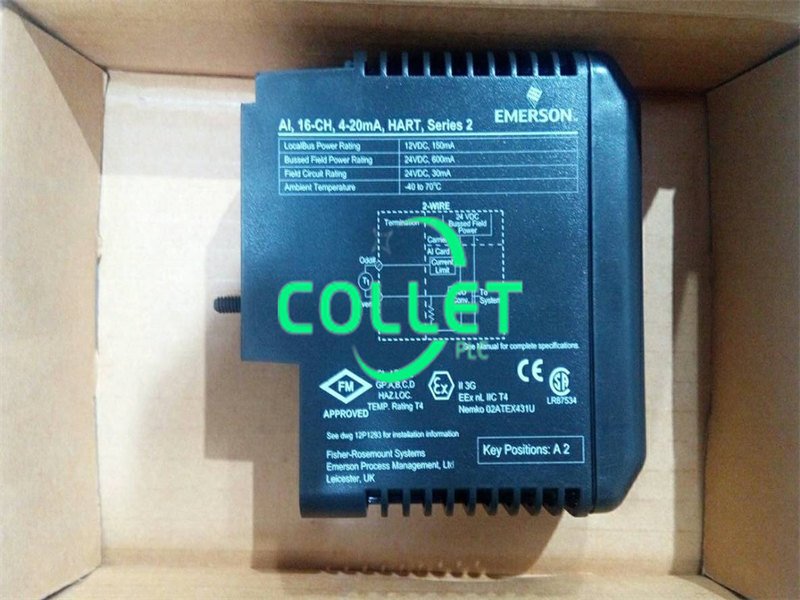

KJ3223X1-BA1 is a 16-channels 4-20mA analog input module for the DeltaV system, designed for efficient signal processing.
Power Specifications:
Local Bus Power 12 VDC at 150 mA
Bussed Field Power 12 VDC at 600 mA
Field Circuit 24 VDC at 32 mA/Ch
Environmental Specifications:
Ambient Temperature: -40 °C to +70 °C
Shock: 10 g half-sine wave for 11 ms
Vibration: 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne Contaminants Class G3
Relative Humidity: 5 to 95% Non-Condensing
Terminal block key position: A2
Datasheet Link:
KJ3223X1-BA1 Emerson AI 16-CH 4-20mA HART PDF datasheet
