IMR6000/30 Emerson system frames

Description:

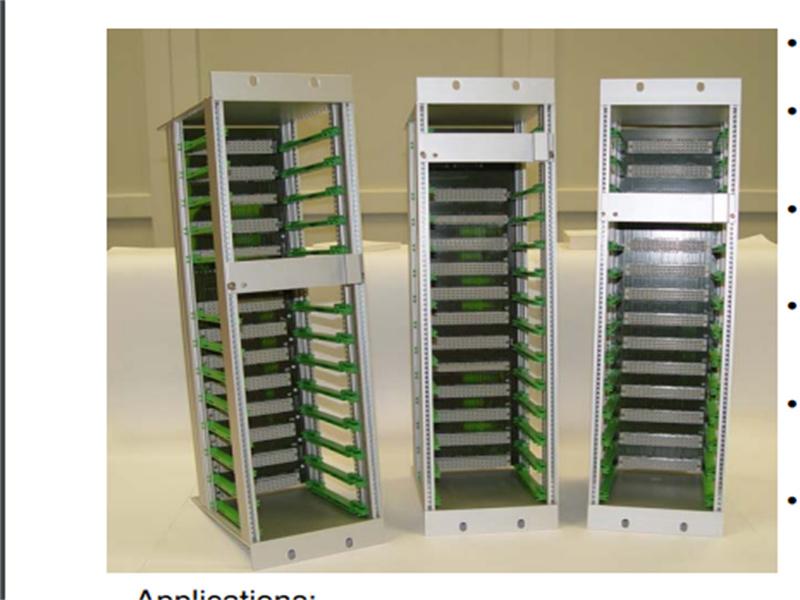

The system frames IMR 6000/10, ../20,
../30 are components of the epro MMS
6000 machine monitoring system.
They consist of a 19” card frame and
comprise the following card slots at the
front side:
• 8−10 Monitor slots (depending on
the IMR type) for monitors of the
MMS 6000 series
• 2−4 slots (depending on the IMR
type) for adaptation of one or more
logic cards e.g. MMS 6740
• 1 slot for adaptation of an interface
card e.g. MMS 6830, MMS 6831, MMS 6824 or MMS 6825
The first monitor slot at the system
frames IMR6000/10 and IMR6000/30
offers the possibility to imply a key
monitor (MMS 6310 or MMS 6312) and
to relay these key signals to other
monitors via the system frame or
external connections.
The rear of the system frames IMR
6000/10, ../20, ../30 serve the purpose
of:
• signal supply
• signal output for further processing
• parameterization of the system
frame
The connection to the external
periphery at the rear of the system
frame is made by spring cage− or
screw connection plugs.
If neccessary, it is possible to build up
several RS485 bus lines within one
system frame by the integration of a
corresponding interface card. The
appropriate parameterization does
take place via external connections
and/or via the configuration of the
regarding Dip− switches.
The system frames IMR 6000/10, ../20,
../30 offer substantial saving potential
with the wiring complexity
