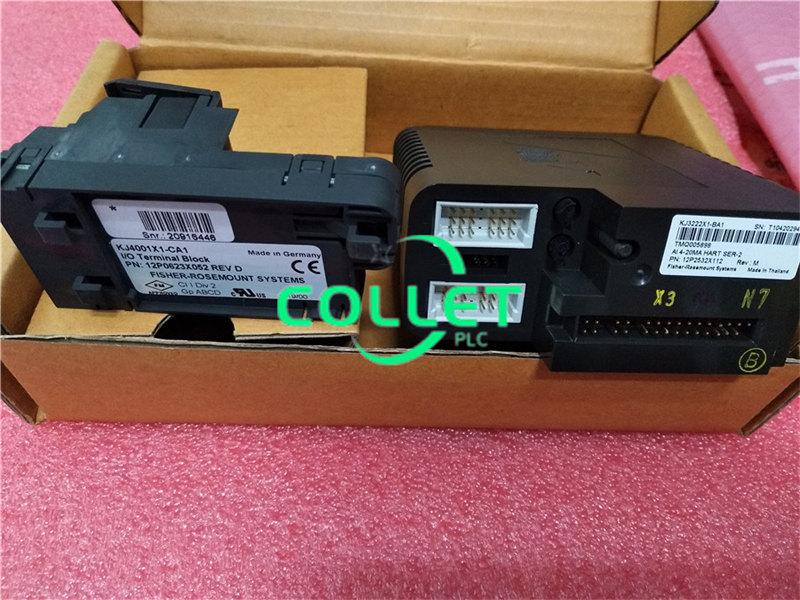

KJ3222X1-BA1 EMERSON AI 8 CH 4-20mA HART CARD

Description:

Ordering Information
Analog Input Cards and Termination Blocks
Description
Model Number
8 Channels 4-20 mA, HART
Standard I/O Termination Block
VE4003S2B1**
Redundant Standard I/O Termination Block
VE4033S2B1**
Fused I/O Termination Block
VE4003S2B2**
4-wire I/O Termination Block
VE4003S2B3**
16-Pin Mass Termination Block
VE4003S2B4**
24-Pin Mass Termination Block
VE4003S2B5**
16 Channels 4-20 ma, HART, Plus Card
16-Channel 2-Wire AI Terminal Block for Series 2 Plus
VE4003S2B9
16-Channel 4-Wire AI Terminal Block for Series 2 Plus
VE4003S2B10
Redundant 16-Channel 2- & 4-Wire AI Terminal Block for Series 2 Plus
VE4033S2B10
48-pin AI Mass Termination Block for Series 2 Plus (to be used with DeltaV Signal Conditioning Cards for
PLC-5 AI, or P+F HiC IS barriers and terminal boards for DeltaV DCS)
VE4003S2B11
48-pin AI Mass Termination Block for Series 2 Plus including 16-channel Analog Mass Connection Boards*
VE4053S2B11
Redundant 48-pin AI Mass Termination Block for Series 2 Plus (to be used with DeltaV Signal Conditioning
Cards for PLC-5 AI, or P+F HiC IS barriers and terminal boards for DeltaV DCS)
VE4033S2B11
Redundant 48-pin AI Mass Termination Block for Series 2 Plus including 16-channel Analog
Mass Connection Boards*
VE4083S2B11
8 Channels Thermocouple, mV
Standard I/O Termination Block
VE4003S4B1
Cold Junction Compensated (CJC) Termination Block
VE4003S5B1
Analog Input Card: 8 Channels RTD
Resistant Temperature Device (RTD) Termination Block
VE4003S6B1
Isolated Input Card
Isolated Input Terminal Block
VE4003S7B1
*For more details on the Mass Connection Boards and connection cables, please refer to the M-series Mass Connection Solutions PDS.
**Supported on DeltaV v10.3.1 and later. DNV Marine Certification pending. If DNV certification is required or card will be used on earlier DeltaV versions,
please request KJ3222X1-BA2.

Datasheet Link:

KJ3222X1-BA1 EMERSON datasheet
