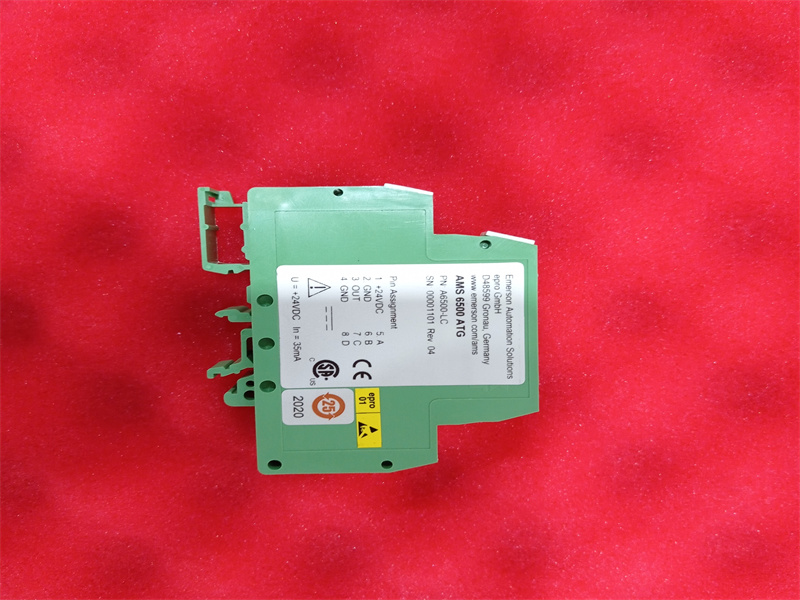

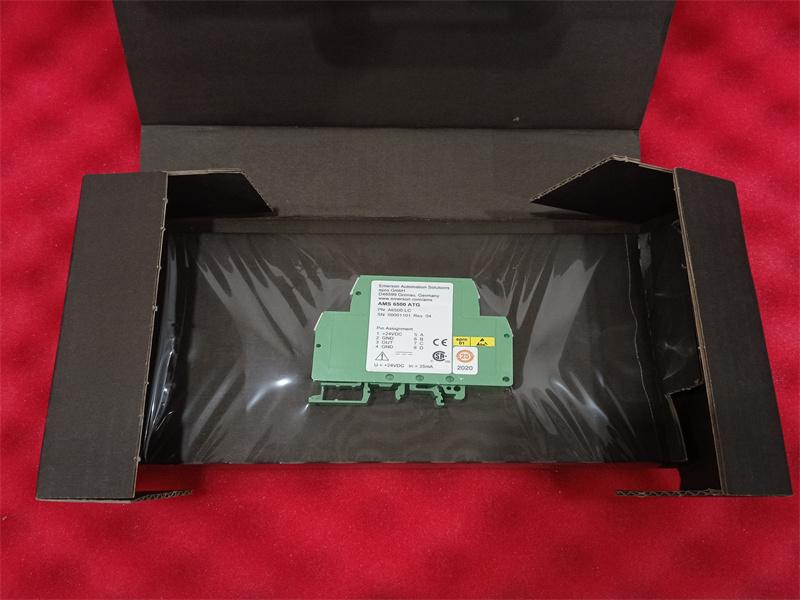

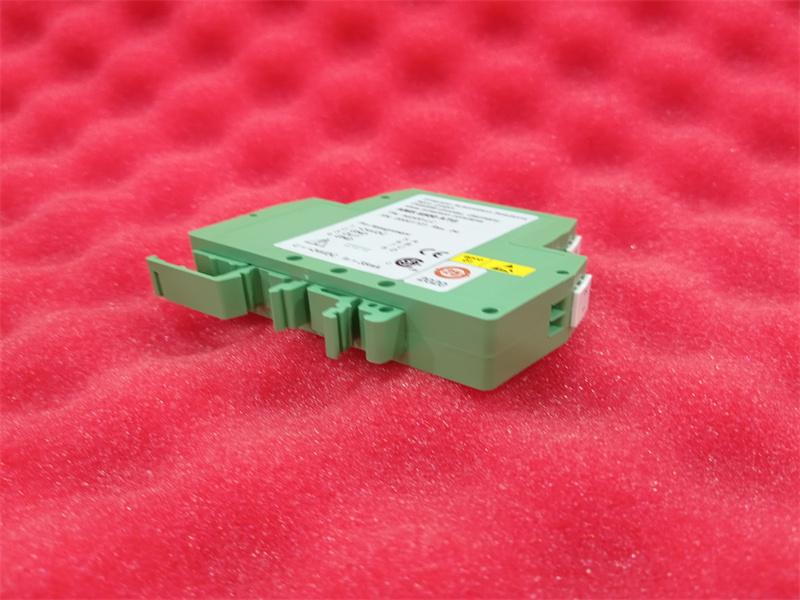

A6500-LC Emerson LVDT Converter

Description:

The A6500-LC LVDT Converter is a single channel device to connect inductive half-bridge
sensors or LVDT sensors to the A6500-UM Universal Measuring Card. The converter
powers the sensor with an excitation voltage and converts the displacement proportional
sensor signal to an output voltage range that is suitable to the Universal Measuring Card.
The converter can be powered either by the Universal Measuring Card or by an external
power supply. The following sensor types can be connected:
• All types of the PR 9350/xx linear displacement transducers
• K20315/xx linear displacement transducer sets
• Inductive half-bridge sensors
• Inductive LVDT sensors as PR 9314/41
The A6500-LC has a fixed sensitivity of 4 V / (100 mV/V). The output voltage range
depends on the connected sensor.
On request, the A6500-LC can be calibrated on one sensor (factory calibration). The
measuring range of the sensor is scaled on the full output voltage range of 2 V to 18 V.
Then, the sensor and the A6500-LC form a measuring chain. Replacing the sensor requires
a recalibration of the A6500-LC.
The sensor supply voltage, supply current, and the sensor signal are supervised by the
internal supervision function.

Datasheet Link:

A6500-LC Emerson LVDT Converter Datasheet
