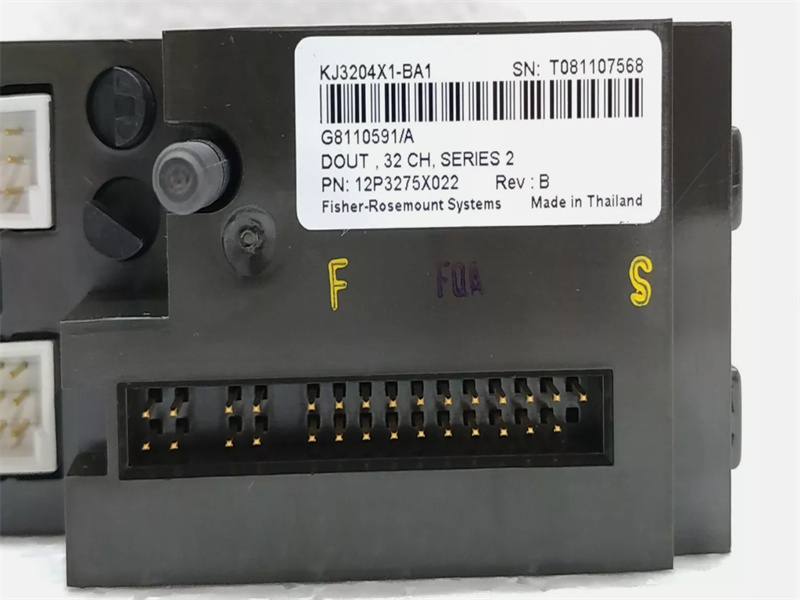

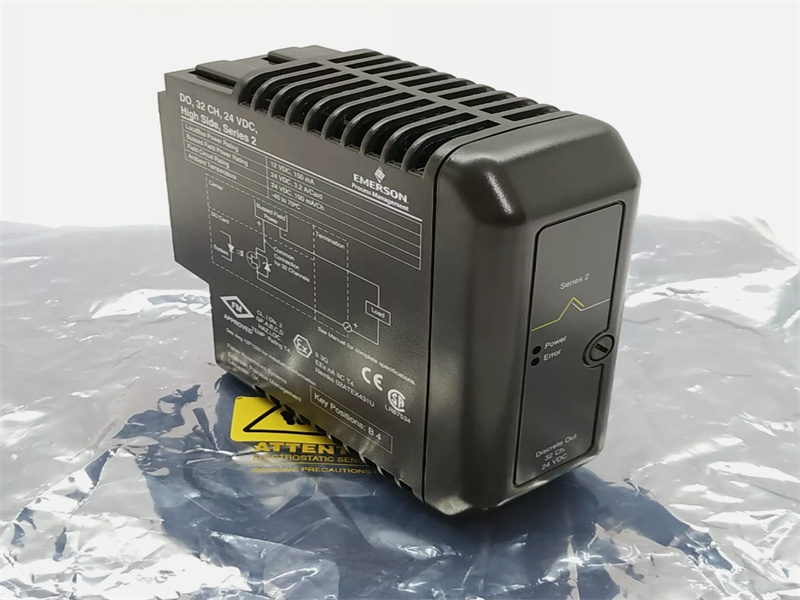

KJ3204X1-BA1 Emerson DO 32-Channel 24 VDC High-Side

Description:

KJ3204X1-BA1 is a DO 32-Channel 24 VDC High-Side for the DeltaV system.

Power Specifications:
Local Bus Power: 12 VDC at 150 mA
Bussed Field Power: 24 VDC at 3.2 A/Card
Field Circuit: 24 VDC at 100 mA/Channel

Environmental Specifications:
Ambient Temperature: -40°C to +70°C
Shock: 10g ½ Sinewave for 11msec
Vibration: 1mm Peak to Peak from 2 to 13.2Hz; 0.7g from 13.2 to 150Hz
Airborne Contaminants: ISA-S71.04 –1985 Airborne
Contaminants: Class G3
Relative Humidity: 5 to 95% Non-Condensing IP 20 Rating
Terminal Block key Position: B4

Frequently Asked Questions:
1.How to maintain and adjust to KJ3204X1-BA1?
KJ3204X1-BA1 contains no user serviceable parts and should not be disassembled for any reason. Calibration is not required.

2.How to remove and insert KJ3204X1-BA1?
This unit cannot be removed or inserted with system power energized unless the area is known to be non‐hazardous and only one unit at a time may be removed or inserted. Non-sparking field circuits MUST be de-energized before removing and inserting. A rotary keying system ensures compatibility between I/O cards and terminal blocks after installation is complete. The terminal block must have the keys set for the I/O card with which it is used.

3.When does the warranty period start?
One year from the time the client receives the goods.

Datasheet Link:

KJ3204X1-BA1 Emerson DO 32-Channel 24 VDC High-Side PDF datasheet
