KJ3004X1-EA1 Emerson, Fieldbus H1 Terminal Block

Description:

Overview:

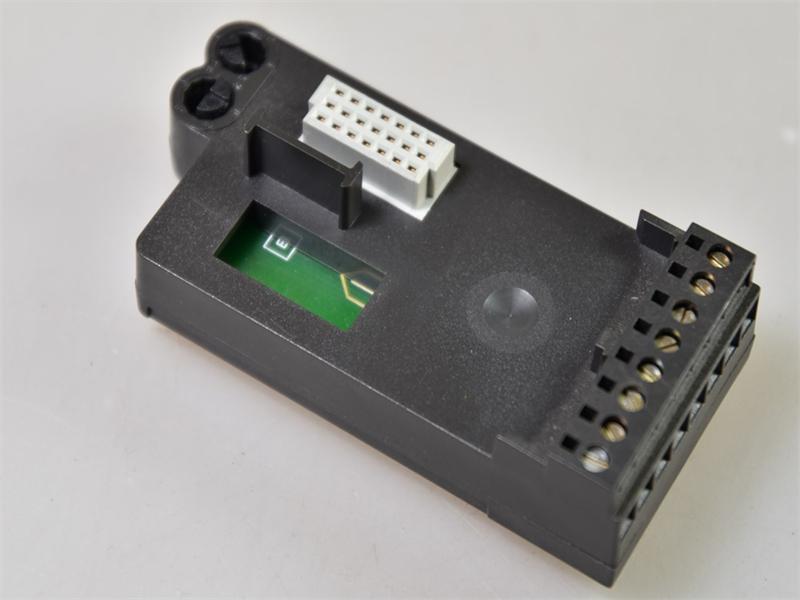

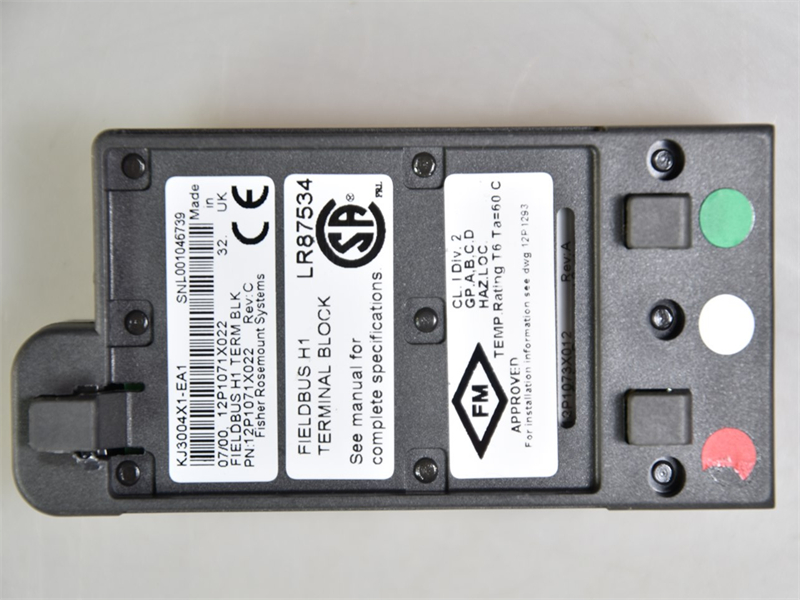

The KJ3004X1-EA1 Fieldbus H1 Terminal Block is a component designed by Emerson Automation Solutions for use in hazardous atmospheres. It is part of the DeltaV™ Electronic Marshalling Digital Automation System (CHARM I/O Subsystem) and is engineered to meet the strict safety and environmental standards required for operation in Zone 2 hazardous locations.

Key Features:
- Designed for use in hazardous atmospheres, specifically Zone 2.
- Supports input power rating of 32 VDC @ 500mA.
- Operates within a wide ambient temperature range of -40 °C to +70 °C.
- Resistant to shock and vibration, ensuring reliable operation in industrial environments.
- Complies with ATEX and IECEx safety standards for use in Class I, Division 2, Groups A, B, C, D, and Zone 2.

Technical Specifications:
- Power Specifications: 32 VDC @ 500mA.
- Environmental Specifications: Ambient Temperature -40 °C to +70 °C, Shock 10 g half-sine wave for 11 ms, Vibration 1 mm peak to peak from 2 to 13.2 Hz; 0.7 g from 13.2 to 150 Hz.
- Airborne Contaminants: ISA-S71.04 – 1985 Airborne Contaminants Class G3.
- Relative Humidity: 5 to 95% non-condensing.

Frequently Asked Questions:
1. What is the power rating of the KJ3004X1-EA1 terminal block?
The KJ3004X1-EA1 terminal block has an input power rating of 32 VDC @ 500mA.

2. What is the operating temperature range of the KJ3004X1-EA1?
The operating temperature range of the KJ3004X1-EA1 is from -40 °C to +70 °C.

3. Does the KJ3004X1-EA1 comply with international safety standards for hazardous locations?
Yes, the KJ3004X1-EA1 complies with ATEX, IECEx, and FM safety standards, making it suitable for use in Class I, Division 2, Groups A, B, C, D, and Zone 2 hazardous locations.
