Manufacture |
GE |
Model |
IS420UCSCH1A |
PN No. |
IS420UCSCH1A |
Catalog |
Mark VIe |
Description |
UCSC CONTROLLER MODULE |
Origin | U.S.A. |
HS CODE |
85389091 |
Dimension |
8.26*4.19*12.1 (CM) |
Weight | 0.5 kg |
Description:

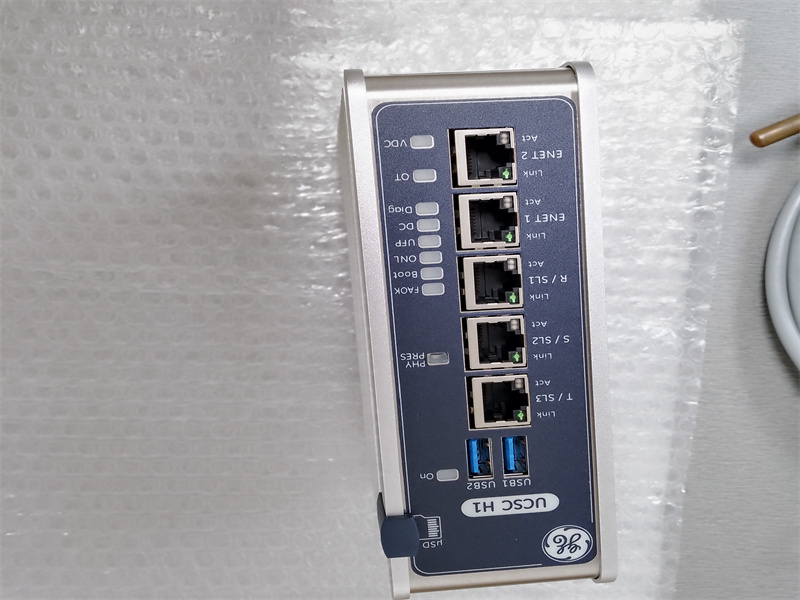

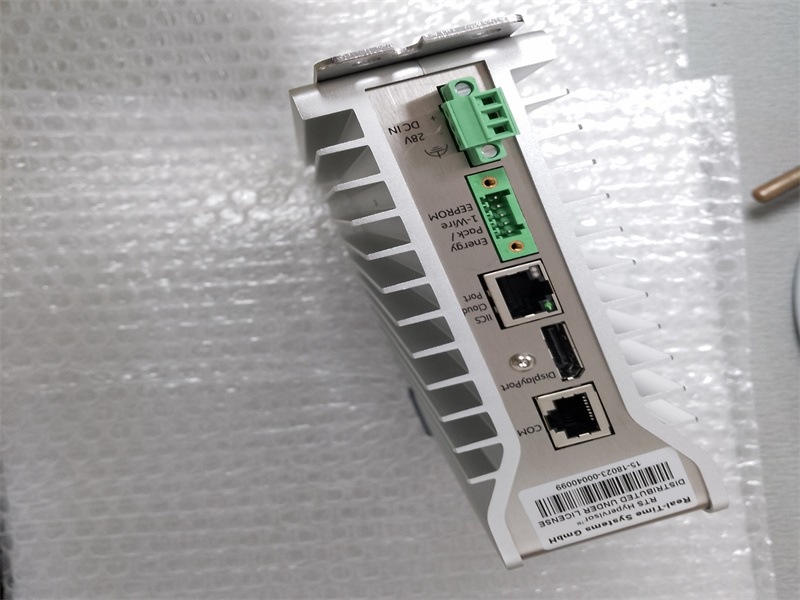

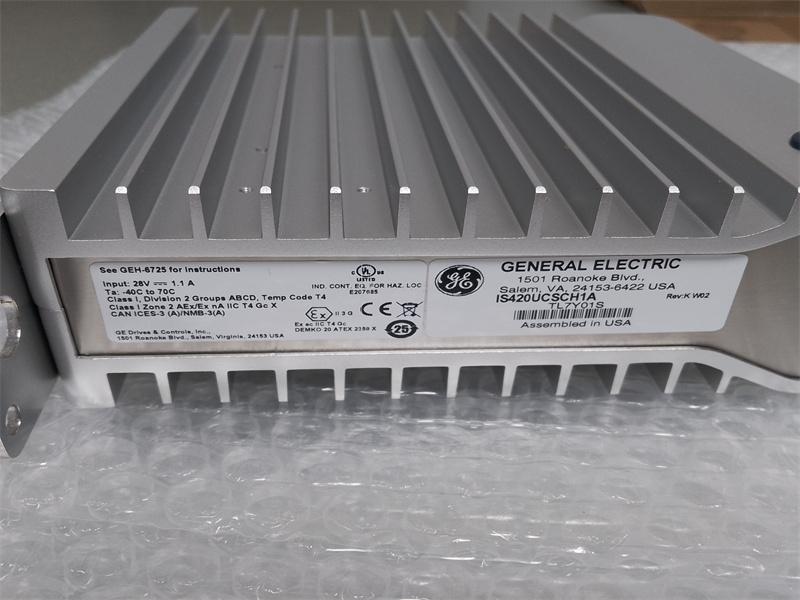

The IS420UCSCH1A is a quad-core controller from the Mark VIe series, developed by General Electric. It operates on the QNX Neutrino operating system, which allows it to run high-reliability and high-speed systems. In addition to the QNX system, this controller utilizes EFA (Embedded Field Agent) technology for applying Predix cloud-based applications over a stable connection, providing real-time data.
To properly install the IS420UCSCH1A controller, several requirements must be met. These include directly mounting the UCSC device to the mounting base, maintaining a minimum air gap of about four inches above and below the UCSC, and ensuring that the operating temperature is approximately one inch away from any point on the UCSC controller.
Communication with the IS420UCSCH1A controller can be established through a UDH network. To facilitate this communication, a four-gigabyte flash drive needs to be configured with the ToolboxST application. All necessary information for determining the configuration can be found in the GEH-6855 manuals, with details about the UCSC controllers provided in chapter two.
Datasheet Link:
IS420UCSCH1A GE Mark VIe, UCSC CONTROLLER MODULE PDF Datasheet
