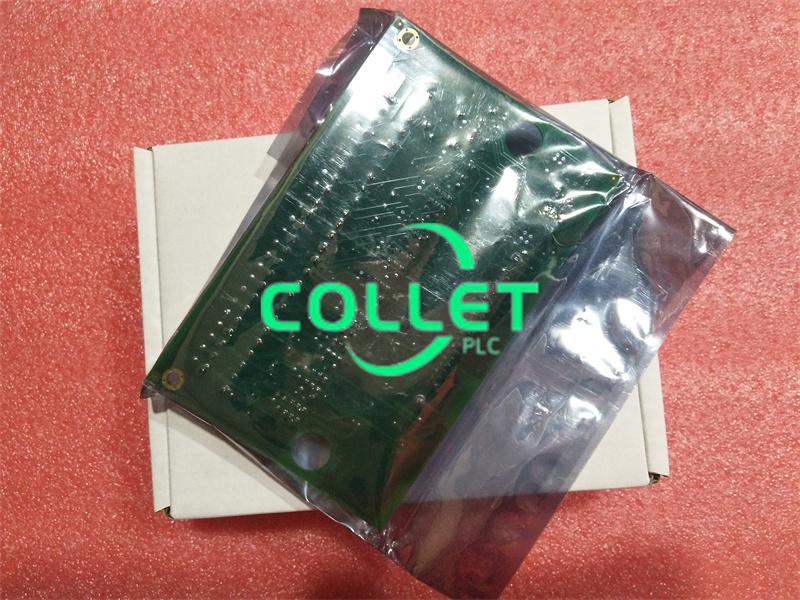

IS200STTCH2AAA GE Simplex Thermocouple Board

Description:

The IS200STTCH2AAA is a specialized electronic component designed for temperature monitoring and control within industrial settings. This component is part of the Mark VIe control system, developed by General Electric (GE). Below is an overview of its primary functions and features:

The IS200STTCH2A serves as a Simplex Thermocouple Board, specifically engineered for efficient thermal monitoring and management. It is equipped with 12 thermocouple inputs, enabling it to monitor multiple temperature points simultaneously. This capability makes it a versatile solution for industrial applications where precise temperature control is critical.
1. Compatibility: The board is designed to interface seamlessly with either the PTCC thermocouple processor board on the Mark VIe or the VTCC thermocouple processor board on the Mark VI. This ensures compatibility with a range of systems, enhancing operational flexibility and ease of integration.
2. Signal Conditioning and Cold Junction Reference: On-board signal conditioning and a cold junction reference are incorporated into the STTC terminal board. These features mirror the functionality found on the larger TBTC board, ensuring accurate temperature readings by compensating for variations at the junction where the thermocouples connect to the board.
3. Terminal Blocks: High-density Euro-Block type terminal blocks are featured on the board. These robust blocks are designed for high-density wiring configurations, ensuring secure and reliable connections. There are two different types of these terminal blocks available to meet specific application requirements.
4. Identification Chip: An on-board ID chip is included, which identifies the board to the processor. This feature is crucial for system diagnostics, allowing for easier troubleshooting and maintenance by providing essential identification information to the processor.

Datasheet Link:

IS200STTCH2AAA GE Simplex Thermocouple Board PDF Datasheet
