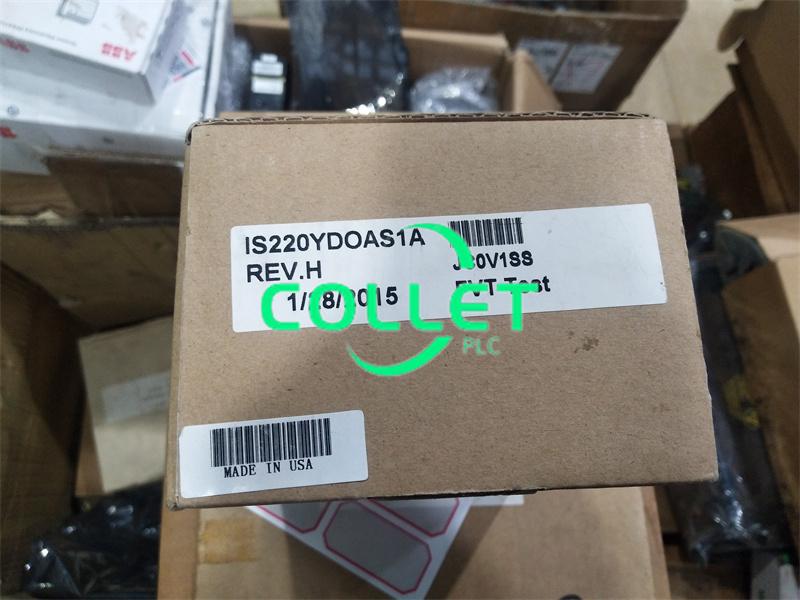

IS220YDOAS1A GE Mark VIeS, Discrete Output Pack

Description:

IS220YDOAS1A is Discrete Output Pack, manufactured by GE.
The Discrete Output (IS420YDOAS1B) I/O pack provides the electrical interface between one or two I/O Ethernet networks and a discrete output terminal board. The pack contains a common processor board and an acquisition board specific to the discrete output function. The YDOA is capable of controlling up to 12 relays and accepts terminal board specific feedback. Electromagnetic relays (with types TRLYS1B, D, and F terminal boards) are available. Input to the pack is through dual RJ-45 Ethernet connectors and a three-pin power input. Output is through a DC-37 pin connector that connects directly with the associated terminal board connector. Visual diagnostics are provided through indicator LEDs.

Frequently Asked Questions:

1.How many relay channels does IS220YDOAS1A have?
12 relays (different types depending on the terminal board) Storage Temperature: -40 to 85°C (-40 to 185 °F)

2.What is I/O Pack Response Time of IS220YDOAS1A?
From Ethernet command to output is approximately 6 ms
