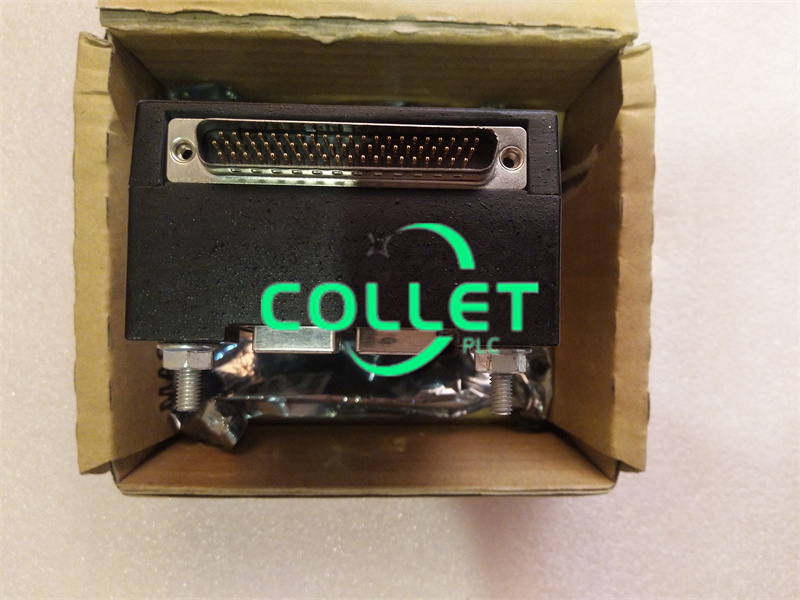

IS220PTCCH2B GE MKVIe, OBS: IO PACK, THERMOCOUPLE

Description:

The IS220PTCCH2B serves as an Input/Output pack for the General Electric Speedtronic Mark VIe system, specifically designed for gas turbines. It plays a crucial role in connecting and managing various turbines and power generation balance of plant (BoP) applications, including steam, gas, and wind turbines, deep-sea drilling operations, desalination plants, gas compression stations, and other facility-wide asset management systems that utilize the GE Mark VIe control systems.

These control systems are composed of three main hardware components: controllers, I/O network (IONet) switches, and I/O modules like the IS220PTCCH2B. These elements work together to provide enhanced redundancy options, improved maintainability, and the flexibility to position I/O modules closer to the equipment being controlled. This configuration ensures the delivery of high-quality, time-coherent data to both controller and plant levels, enabling more effective management of control system equipment.

The Mark VIe control product line relies on the ControlST software suite for programming, configuring, trending, and troubleshooting purposes. This suite includes ToolboxST and WorkstationST programs, which are essential for these tasks. The ToolboxST configuration windows are frequently used by operators to set up and manage the system.

The Mark VIe controller is a single-board, stand-alone processor with expandable computing capabilities. It does not require batteries or jumper settings due to its built-in power supplies, simplifying its operation and maintenance.

To further streamline operations and maintenance, controllers operate using the ControlST* Software Suite. This provides a unified software environment for turbine and generator excitation controls in the power island and balance of plant equipment. The software suite is instrumental in ensuring that all components of the system work seamlessly together, enhancing the overall efficiency and effectiveness of the control system.
